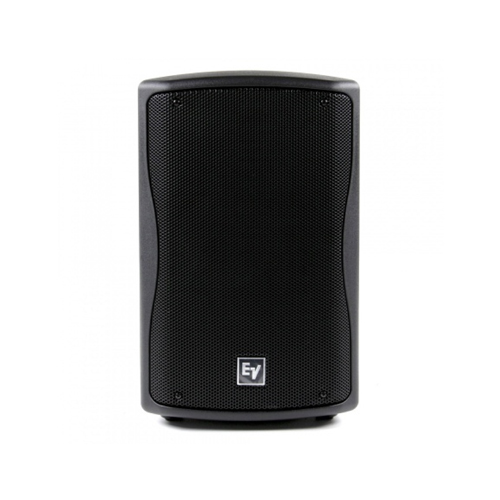

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น ZX5-90PI
Features:
- All Weather IEC 529, IP44, & MIL810 Environmental Specs
- DVX3150 15” LF Transducer with Forced Air Cooling
- ND2 2” Voice Coil, 1” Exit Neodymium Compression Driver
- 90° x 50° Coverage Pattern
- 600W Continuous (2400W) Power Handling
- High Sensitivity, 132 dB Maximum SPL
- 3 Anchor Plates for Single Stud Fittings and 10 Integral Suspension Points
- Complete Mounting Solutions
Specifications
- Freq. Response1 (-3 dB): 58 Hz – 18 kHz
- Freq. Range1 (-10 dB): 39 Hz – 20 kHz
- Rec. Hipass Frequency: 36 Hz
- Axial Sensitivity1 : 98 dB (1W/1m)
- Max. Calculated SPL: 132 dB
- Horizontal Coverage: 90°
- Vertical Coverage: 50°
- Power Handling (Passive): 600W Continuous, 2400W Peak
- LF Power Handling (Biamp): 500W Continuous, 2000W Peak
- HF Power Handling (Biamp): 40W Continuous, 160W Peak
- LF Transducer: DVX3150, 15 in (381mm) Driver
- HF Transducer: ND2, 1 in (25.4mm) exit Neodymium Compression Driver
- Crossover Frequency: 1.5 kHz
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 6.5 Ohms
- Connectors: 2 Conductor SJO Cable and Gland Nut
- Enclosure Material: Polypropylene Structural Foam
- Suspension: Enclosure has locations for 5 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts – 2 on Top, 2 on Bottom, 2 on Side, and 4 on Rear of Enclosure
- Grille: Polyester Powder Coated, 16GA Galvanized Steel, with Hydrophobic Cloth Environmental Spec: IEC 529 IP24 / IP44 (PI Version)
- Dimensions (H x W x D): 692mm x 446mm x 411mm (27.26” x 17.57” x 16.16”)
- Net Weight: 22.2 kg (49.0 lbs)
- Shipping Weight: 26.0 kg (57.4 lbs)
