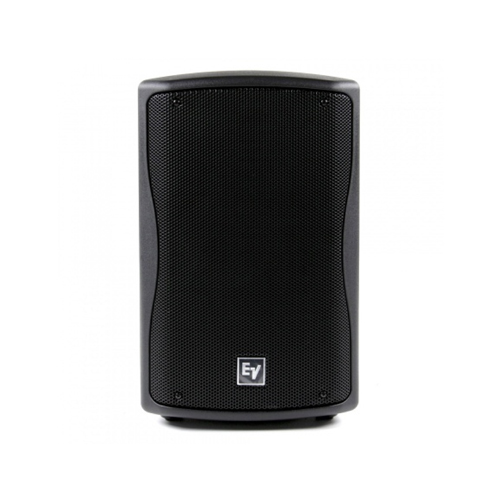

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น ZXA1-90B

Features:

• Integrated 800W power amplifier
• Biamplified design with transducer protection
• XLR and TRS Combo Inputs
• Independent Gain on XLR
• Requires 120V: 95V – 132V, 50 – 60 Hz, 0.6A
• Frequency Response: (-3 dB) 60 Hz – 20 kHz Hz
• Frequency Response: (-10 dB) 48 Hz – 20 kHz Hz
• EV8L 8-inch high-output LF transducer
• DH2005, 25mm (1-inch) Exit Compression Driver HF Transducer
• 1800 Hz Crossover Frequency
• High-impact injection-molded Polystyrene
• Polyester Powder Coated, 18GA Galvanized Steel Grill
• Built-in pole mount
• Built-in angle rest design for floor monitoring

Specs.

• Input Connections: XLR and TRS Combo; XLR with Independent Gain
• Power Requirement: 120V: 95V – 132V, 50 – 60 Hz, 0.6A; 230V:190V – 264V, 50 – 60 Hz, 0.4A
• Frequency Response: (-3 dB) 60 Hz – 20 kHz Hz Full Range Mode
• Frequency Response: (-10 dB) 48 Hz – 20 kHz Hz Full Range Mode
• Recommended High-Pass Frequency: 100Hz (User Selectable)
• Max. SPL/1m (calc): 123 dB
• LF Transducer: EV8L, 203mm (8-inch) Driver
• HF Transducer: DH2005, 25mm (1-inch) Exit Compression Driver
• Crossover Frequency: 1800 Hz
• Enclosure Material: High Impact Polystyrene
• Grill: Polyester Powder Coated, 18GA Galvanized Steel
• Height: 457 mm (17.99 inches)
• Width: 282 mm (11.1 inches)
• Depth: 264 mm (10.39 inches)
• Weight: 8.62 kg (19 lbs)
• Shipping Weight: 10.3 kg (22.7 lbs)
