7D8FA010AP
- Improved single-socket processor performance:
- Intel Xeon E-2300 Series processors (“Rocket Lake-E”) up to to 8 cores and core speeds up to 3.7 GHz
- Intel Pentium G6405, G6505 and G6605 processors (“Comet Lake Refresh”) with 2 cores and core speeds up to 4.3 GHz
- Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 128 GB
- Four PCIe slots for I/O expansion, one of which has the new PCIe Gen4 interface to maximize I/O performance.
- Flexible storage configurations support either 2.5-inch or 3.5-inch hot-swap drive bays or a combination of the two (hybrid configuration). Drive bays support SAS and SATA HDDs and SSDs.
- Up to 16x 2.5-inch hot-swap drive bays
- Up to 8x 3.5-inch hot-swap drive bays
- Up to 4x 3.5-inch + 8x 2.5-inch drive bays
7D8FA011AP
- Improved single-socket processor performance:
- Intel Xeon E-2300 Series processors (“Rocket Lake-E”) up to to 8 cores and core speeds up to 3.7 GHz
- Intel Pentium G6405, G6505 and G6605 processors (“Comet Lake Refresh”) with 2 cores and core speeds up to 4.3 GHz
- Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 128 GB
- Four PCIe slots for I/O expansion, one of which has the new PCIe Gen4 interface to maximize I/O performance.
- Flexible storage configurations support either 2.5-inch or 3.5-inch hot-swap drive bays or a combination of the two (hybrid configuration). Drive bays support SAS and SATA HDDs and SSDs.
- Up to 16x 2.5-inch hot-swap drive bays
- Up to 8x 3.5-inch hot-swap drive bays
- Up to 4x 3.5-inch + 8x 2.5-inch drive bays

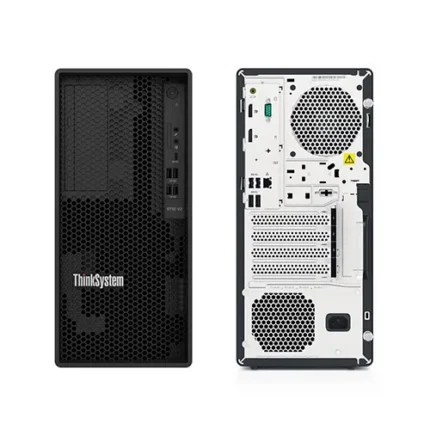

7D8JA00TAP
- Brand Lenovo
- DescriptionServer Lenovo ThinkSystem ST50 V2
- SKU 7D8JA00TAP
- ProcessorIntel Xeon E-2386G 6C/12T 12M Cache 95W 3.5GHz
- Memory8GB TruDDR4 3200 MHz (1Rx8, 1.2V) ECC UDIMM
7D8JA00UAP
- Intel Xeon E-2324G 4C/4T 8M Cache 65W 3.1GHz
- 8GB TruDDR4 3200 MHz (1Rx8, 1.2V) ECC UDIMM
- SATA 1×3.5″ bay; Open?bay
- 1x DVD-RW Optical Drive
- 500Watts Fixed Power Supply Internal
- 3 years warranty 24x7x4, Part and Labor, On-site*
7D8JA00WAP
-
CPU :Intel® Xeon E-2324G 4C 65W 3.1GHz
-
RAM :8GB TruDDR4 3200 MHz (1Rx8, 1.2V) ECC UDIMM
-
HDD :No HDD, Open Bay HDD 3.5″ SATA
-
RAID :Software RAID
-
OPTICAL :DVD-RW
7D8JS0CY00
- CPU : Intel Xeon E-2324G 3.1GHz
- RAM : 16GB RDIMM
- Storage : 4TB HDD
- RAID : Software RAID
- ODD : DVD-ROM
- Network : 1GbE
- Power : 300W Fixed
7Y99A00QSG
-
CPU :AMD EPYC 7402P 24C 180W 2.8GHz Processor
-
RAM :1x32GB TruDDR4 3200MHz
-
HDD :No HDD/ 8x 2.5″ SAS Open bay
-
RAID :RAID 730-8i 2GB Flash
-
OPTICAL :No Optical Drive (Optional)
-
NIC :1Gb 4-port RJ45 LOM
-
POWER :2x750W (230V) Titanium Hot-Swap Power Supply
7Y99A00RSG
- Supports the AMD EPYC 7002 and EPYC 7003 families family of processors
- Supports processors with up to 64 cores and 128 threads, core speeds of up to 4.1 GHz, and TDP ratings of up to 280W.
- Support for up to 16 TruDDR4 memory DIMMs, with 8 memory channels and 2 DIMMs per channel. With 1 DIMM installed per channel (8 DIMMs total), memory operates at up to 3200 MHz. With 2 DIMMs per channel (16 DIMMs total), memory operating at up to 2933 MHz.
- Using 128GB DIMMs, the server supports up to 2TB of system memory.
- Supports up to three single-width GPUs, each up to 75W. A 3:1 ratio of GPUs to CPUs means substantial processing power is available with just one CPU.
- Supports up to 16x 2.5-inch hot-swap drive bays, by using combinations of front-accessible (up to 10 bays), mid-accessible (4 bays), and rear-accessible (2 bays).
- Supports four 3.5-inch drive bays for lower-cost high-capacity storage. 2.5-inch and 3.5-inch drive bays can be mixed in several combinations.
7Y99A00VSG
-
CPU :AMD EPYC 7302P 16C 155W 3.0GHz Processor
-
RAM :1x32GB TruDDR4 3200MHz
-
HDD :No HDD/ 8x 2.5″ SAS Open bay
-
RAID :RAID 730-8i 2GB Flash
-
OPTICAL :No Optical Drive (Optional)
7Y99A00YSG
- Supports the AMD EPYC 7002 and EPYC 7003 families family of processors
- Supports processors with up to 64 cores and 128 threads, core speeds of up to 4.1 GHz, and TDP ratings of up to 280W.
- Support for up to 16 TruDDR4 memory DIMMs, with 8 memory channels and 2 DIMMs per channel. With 1 DIMM installed per channel (8 DIMMs total), memory operates at up to 3200 MHz. With 2 DIMMs per channel (16 DIMMs total), memory operating at up to 2933 MHz.
- Using 128GB DIMMs, the server supports up to 2TB of system memory.
- Supports up to three single-width GPUs, each up to 75W. A 3:1 ratio of GPUs to CPUs means substantial processing power is available with just one CPU.
- Supports up to 16x 2.5-inch hot-swap drive bays, by using combinations of front-accessible (up to 10 bays), mid-accessible (4 bays), and rear-accessible (2 bays).
- Supports four 3.5-inch drive bays for lower-cost high-capacity storage. 2.5-inch and 3.5-inch drive bays can be mixed in several combinations.
7Y99S64300
- AMD EPYC 7272 12Core 24Thread 120W 2.9GHz 64MB Cache
- 16GB TruDDR4 2933 MHz RDIMM
- 2x 960GB SSD SATA Entry Hard Disk 6GB
- ThinkSystem RAID 530-8i PCIe 12Gb Adapter
- (Support RAID-0/1/10/5/50)
7Y99S64400
- CPU : AMD EPYC 7272 12C 120W 2.9GHz Processor
-
RAM : 16GB TruDDR4 2933MHz (1Rx4 1.2V) RDIMM-A
-
HDD : 2x ThinkSystem 2.5″ 1.2TB 10K SAS 12Gb Hot Swap 512n HDD
-
RAID : RAID 530-8i PCIe 12Gb Adapter
