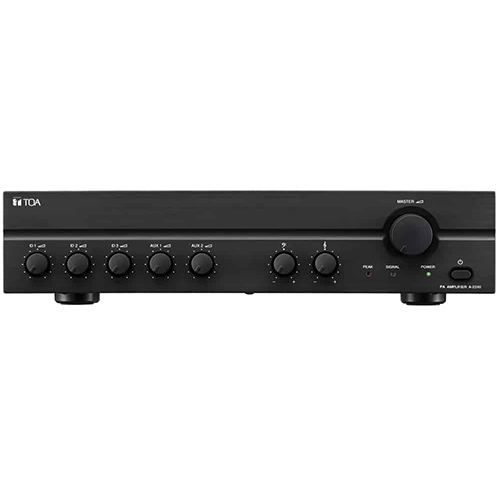

Power Mixer ยี่ห้อ TOA รุ่น A-2240 CE AU
Specification
| Power Source | 220 – 240 V AC, or 24 V DC |
|---|---|
| Rated Output | 240 W |
| Power Consumption | 238 W (EN60065), 15 A (DC operation at rated output) |
| Frequency Response | 50 – 20,000 Hz (±3 dB) |
| Distortion | 1% or less at 1 kHz, 1/3 rated power |
| Input | MIC 1 – 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1) |
| Output | Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33″) High impedance: 42 Ω (100 V), 21 Ω (70 V) Low impedance: 4 Ω (31 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack |
| Phantom Power | DC +21 V (MIC 1) |
| S/N Ratio | 60 dB or more |
| Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Muting | MIC 1 overrides other input signals with 0 – 30 dB attenuation by mute terminal contact. |
| Ventilation | Fan cooling |
| Finish | Panel: ABS resin, black Case: Steel plate, black |
| Dimensions | 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54″ × 3.97″ × 14.19″) |
| Weight | 13.2 kg (29.1 lb) |
