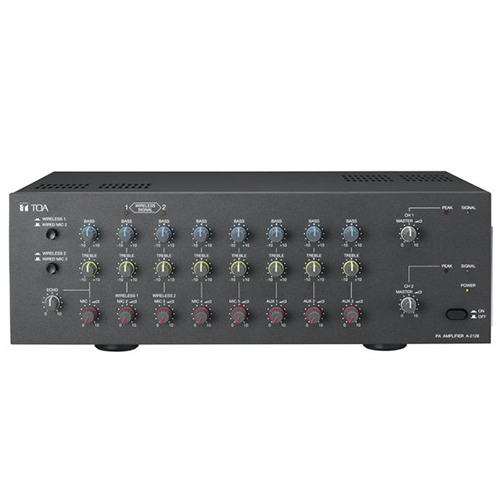

Power Mixer ยี่ห้อ TOA รุ่น A-2128S AS
Specs.
| Power Source | 220V, 50/60Hz AC, or 24 V DC |
|---|---|
| Power Output | Rated 120W |
| Power Consumption | AC : 350W ( rated output ) AC : 170W ( operation at EN60065 ) DC : 15A ( operation at rated output ) |
| Frequency Response | 50 – 20,000 Hz (±3 dB) |
| Distortion | Less than 1% THD at 1kHz, 1/3 rated output power |
| Inputs ( Sensitivity, Impedance, Connector ) |
MIC 1 : Rear 1.0mV (- 60dB*) Balanced 600Ω, Phone Jack, Echo MIC 2 : Rear 1.0mV (- 60dB*) Balanced 600Ω, Phone Jack MIC 3 : Rear 1.0mV (-60dB*) Balanced 600Ω, Phone Jack MIC 4 : Rear 1.0mV (-60dB*) Balanced 600Ω, Phone Jack MIC 5 : Rear 1.0mV (-60dB*) Balanced 600Ω, Phone Jack AUX 1 : Rear 300mV (-10dB*) Unbalanced 10kΩ, RCA Pin Jack AUX 2 : Rear 300mV (-10dB*) Unbalanced 10kΩ, RCA Pin Jack AUX 3 : Rear 300mV (-10dB*) Unbalanced 10kΩ, RCA Pin Jack |
| Speaker Outputs | 100V, 4Ω |
| PRE AMP OUT | 1.0V (0dB*) Unbalanced 600Ω, RCA Pin Jack |
| PWR AMP IN | 1.0V (0dB*) Unbalanced 10kΩ, RCA Pin Jack |
| REC OUT | 1.0V (0dB*) Unbalanced 600kΩ, RCA Pin Jack |
| Phantom Power | DC + 21V (MIC 1) |
| Noise Level (S/N) | More than 80dB at all volume control full CCW More than 50dB at all volume control full CCW |
| Output Regulation | Less than 3 dB no load to full load |
| Controls | Front : 5 Microphone Gain Controls Front : 3 Aux Gain Controls Front : 8 Bass Tone Controls Front : 8 Treble Tone Controls Front : 1 Echo Level Controls Front : 1 Master Controls Front : 1 Power ON / OFF Switch |
| Tone Control | Bass : ±10 dB at 100Hz, Treble : ±10 dB at 10 kHz |
| Indicators | 1 LED signals, 1 LED Peak, 1 LED Power ON |
| Ambient Temperature | 0° C to 40° C |
| Dimensions | 420 (W) x 144 (H) x 361 (D) in mm |
| Weight | 13 kg |
| Finish | Front Panel : Aluminum Gray ; Case : Steel plate, Gray |
