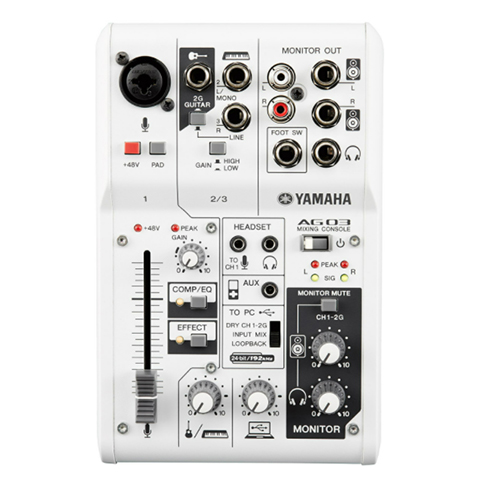

Mixing Console ยี่ห้อ YAMAHA รุ่น AG03
Multipurpose 3-channel mixer with USB audio interface
- Multipurpose 3-channel mixer with USB audio interface.
- Flexible LOOPBACK feature – perfect for live recording or webcasting.
- High resolution (24-bit192kHz) 2-track audio recording and playback.
- “D-PRE” studio quality mic preamps with high gain and low noise.
- Easy control and pro sound with 1-TOUCH COMP/EQ, EFFECT processing.
- +48V phantom power on CH1 input for condenser mics and Dl boxes.
- Hi-Z input for guitars on CH2.
- iPad (2 or later) connectivity via Apple iPad Camera Connection Kit (requires external USB power supply).
- USB buspowered for Mac & PC.
- Rugged metal chassis.
- Includes Cubase AI downloadable version.
| AG06 | AG03 | ||
|---|---|---|---|
| I/O | แฟนทอม เพาเวอร์ | + 48 V | + 48 V |
| Input Channels | Mono[MIC/LINE] | 2 including HEADSET MIC (Plug-in Power) | 1 including HEADSET MIC (Plug-in Power) |
| Stereo[LINE] | 2 | 1 including Guitar input (Mono) | |
| AUX | 1 | 1 | |
| Output Channels | STEREO OUT | 1 | – |
| MONITOR OUT | 1 | 2 | |
| PHONES | 2 including HEADSET PHONES | 2 including HEADSET PHONES | |
| Bus | Stereo: 1 | Stereo: 1 | |
| Input Channel Function | PAD | 26 dB | 26 dB |
| PEAK LED | LED turns on when the signal reaches 3 dB below clipping level | LED turns on when the signal reaches 3 dB below clipping level | |
| Level Meter | USB Output Level; 2 x 2 point LED meter [PEAK, SIG] | USB Output Level; 2 x 2 point LED meter [PEAK, SIG] | |
| USB | USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | |
| On-board processors | DSP | CH1: COMP / EQ, EFFECT (SPX Reverb) ; CH2: AMP SIM, EFFECT (SPX Reverb) | CH1: COMP / EQ, EFFECT (SPX Reverb) |
| Power requirements | DC 5 V, 500 mA | DC 5 V, 500 mA | |
| Power consumption | Max. 2.5 W | Max. 2.5 W | |
| Dimensions | W | 155 mm (6.1″) | 129 mm (5.1″) |
| H | 63 mm (2.5″) | 63 mm (2.5″) | |
| D | 202 mm (8.0″) | 202 mm (8.0″) | |
| Net weight | 1.0 kg (2.2 lbs) | 0.8 kg (1.8 lbs) | |
| Options | Foot Switch: FC5, Mic Stand Adaptor: BMS-10A | Foot Switch: FC5, Mic Stand Adaptor: BMS-10A | |
| Others | Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C | Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C | |
| ระบบปฏิบัติการ | OS | Windows 7 or later / Mac OS X 10.7 or later | Windows 7 or later / Mac OS X 10.7 or later |
