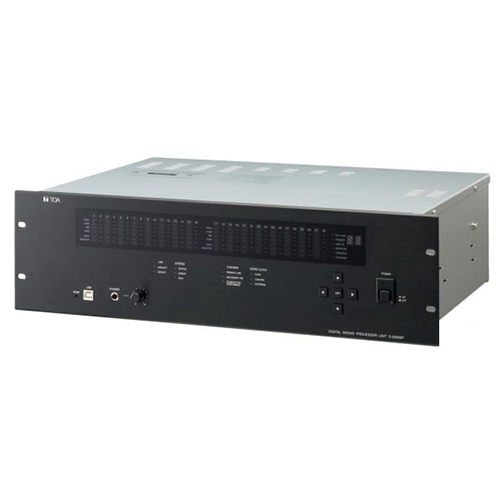

Mixer Unit ยี่ห้อ TOA รุ่น D-2008SP CE
The D-2008SP Digital Mixing Processor Unit is designed to have up to 32 audio inputs and outputs in total, and to be mounted in an EIA standard equipment rack (3U size). A built-in powerful signal processing function permits the unit to be used as both a mixer and a signal processor. Its audio input/output and control ports can accept optional plug-in modules, making the unit have a maximum of 32 inputs or 32 outputs and up to 2 control modules. Using the following optional modules enables the unit to perform their functions: Two D-983s for providing a maximum of 48 contact inputs and 32 contact outputs, D-984VC for VCA control, and D-2000CB for audio data transfer between multiple D-2008SP units. Each function is set by the dedicated setting software on a PC. Setting contents can be stored in the unit’s internal memory as preset memory, which can be recalled by the D-2008SP without using a PC. Up to 4 units can be linked via the CobraNet ® interfaces. The D-2012C, when connected, remotely controls the D-2008SP’s basic operations such as volume control.
- 32 preset memories for user convenience
- Up to 32 different routing and parameter configurations can be stored for frequent changes in staging, seating and speaker arrangements
- Intuitive GUI
- Mixing console option offers easy user operation
- User-friendly VCA control
Specifications
| D-2008SP | |
|---|---|
| Power source | 220 – 240 V AC, 50 / 60 Hz |
| Frequency response | 20 Hz – 20 kHz (±1 dB (+4 dB Input) |
| Power consumption | 76 W |
| Indicator | Power, status of LAN, system, CobraNet and Word clock; key lock, preset no., unit ID, monitor, console, CobraNet, for each channel: bargraph level meter, gate, monitor |
| Inputs | Max. 32 channels, modular construction (modules optional), 1 stereo monitor input (LAN) |
| Outputs | Max. 32 channels, modular construction (modules optional) Monitor bus: 1 stereo output (LAN), headphone: 1 stereo |
| Controls | RS-232C, D-sub connector (9 pins) used for external control, Remote control module slots: 2 |
| LAN | 10BASE-T/100BASE-TX,(Automatic-Negotiation) connected via a switching hub Network protocol: TCP/IP Connection cable: Shielded Category 5 or higher twisted pair LAN cable (CAT5-STP) Maximum cable distance: 100m (between D-2008SP and switching sub) |
| Signal processing | Feedback suppressor, auto-mixing with NOM, ducker and 4 groups |
| Presets | 32 |
| Sampling frequency | 48 kHz |
| Equalizer / Filter | Parametric equalizer, high-pass, low-pass, notch, all-pass, high shelving, low shelving, horn equalizer, crossover |
| Compressor | For each channel: compressor/auto-leveler, all parameters and 1 hard knee, 2 soft knees |
| Delay | Output: 0 – 1360 ms, bus: 0 – 677 ms |
| Matrix | 34 inputs, 24-channel bus, 44-channel output bus, crosspoint gain; CobraNet matrix: 16-channel input & output |
| Other features | Keylock, expandable with 3 further D-2008SP (128 audio inputs and outputs) |
| PC software | included |
| Operating temperature | +5 °C to +40 °C |
| Finish | Aluminium, hairline, black |
| Dimensions | 482 x 132.6 x 343.4 mm (W x H x D) |
| Weight | 6.3 kg |
| Accessory (included) | Power cord (2 m) x 1, Rack mounting screws x 4, Setup software x 1, Module mounting csrew x 4, blank panel x 8 |
