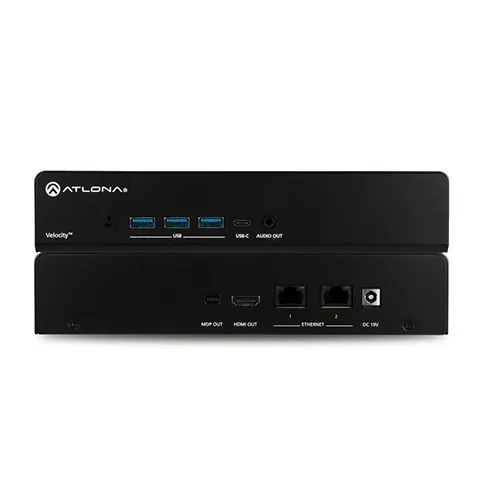

network control panel ยี่ห้อ ATLONA รุ่น AT-VGW-HW-3
- Hardware server gateways for AV system control, room scheduling, and device management
- Access from a web browser for setup and management
- Simplify system or device configuration, deployment, and management with the interactions, flow, and visual elements of a web or mobile app GUI
- Velocity Device Manager for configuring Atlona devices over the network
- Velocity Premier Services — Remote Gateway (AT-VPS-RG), for remote configuration, management, and control
- Supports industry-standard, network security features and protocols
Specifications
| Control Software | |||||||||||
| Built-in web portal for system configuration and management |
| IP | |||||||||||
| NIC | Two Network Interface Controllers (NIC) – supports segregated AV and facility LANs | ||||||||||
| Ports | 2 x RJ-45 ports, one to each NIC | ||||||||||
| Standards and Protocols | DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x | ||||||||||
| Ethernet Speed | 10/100/1000 Mbps | ||||||||||
| Addressing | DHCP, static | ||||||||||
| Temperature | |||||||||||
| Operating | 0°C to 50°C | 32°F to 122°F | |||||||||
| Storage | -20°C to 60°C | -4°F to 140°F | |||||||||
| Humidity (RH) | 20 to 90%, non-condensing | ||||||||||
| Power | |||||||||||
| Consumption | 40W (min) to 55W (max) | ||||||||||
| Supply | 19V / 3.42A | ||||||||||
| Dimensions (H x W x D) | Inches | Millimeters |
| Unit | 1.73 x 8.64 x 4.48 | 44 x 219.5 x 114 |
| Power Supply | 1.25 x 1.88 x 4.25 | 31.75 x 47.63 x 107.95 |
| Weight | Pounds | Kilograms |
| Device | 1.9 | 0.86 |
| Certification | |||||||||||
| Unit | CE, FCC | ||||||||||
| Power Supply | KC, UL, ETL, RCM, CE, FCC, TUV Safety, CCC, EAC, BSMI, PSE | ||||||||||
