ATW-1701/MT830cW

Plug & Record Set for DIY Videographer
Audio Technica cW-Style 4-Pin Connection
Bodypack Transmitter

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

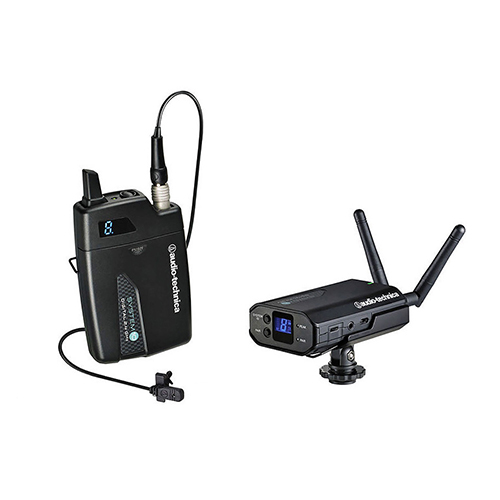

ไมโครโฟน Camera-Mount Wireless ยี่ห้อ Audio-Technica รุ่น ATW-1701/MT830cW

The Audio-Technica System 10 ATW-1701 is a digital wireless microphone system specifically engineered to meet the audio needs of vloggers, mobile journalists, and videographers. It provides an easy-to-operate solution with sophisticated technology to ensure reliability and high-quality audio for projects ranging from YouTube and wedding videos to corporate spots and interviews.

The ATW-1701 features a bodypack transmitter with a cW-style 4-pin locking connector, allowing you to plug in a compatible lavalier or headset mic of your choice. The camera-mount receiver connects to your DSLR or mirrorless camera with the included 3.5mm output cable. The System 10 operates anywhere in the world, transmitting 24-bit/48 kHz audio in the 2.4 GHz spectrum, well away from potential TV and radio interference.

This peer-to-peer system delivers three levels of diversity assurance—frequency, time, and space—for optimal performance at a range up to 100′. Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing before a shoot. Up to eight wireless mics may be used on set at once.

Features

Plug & Record Set for DIY Videographer
Audio Technica cW-Style 4-Pin Connection
Bodypack Transmitter
Triple-Diversity Camera-Mount Receiver
Protected Peer-to-Peer Connection
Easy to Use, Flexible Operation
Balanced Output & Headphone Output
7-Hr Batteries + USB Power
Up to 8 Mics on Set / 100′ Range

Specifications

System

Wireless Transmission	Digital 2.4 GHz
Included Transmitters	1 x Bodypack
Diversity	Frequency, Time & Space Diversity
RF Frequency Band	2400 to 2483.5 MHz
Max Operating Range	100′ / 30.5 m (Line of Sight)
Max Systems per Setup	8
Sample Rate/Resolution	48 kHz / 24-Bit
Dynamic Range	>109 dBA

Receiver

Form Factor	Camera-Mount
Mounting Options	Belt Clip, Shoe-Mount (with Included Hardware)
Antenna	2 x External, Detachable
Number of Audio Channels	1
Audio I/O	1 x 1/8″ / 3.5 mm TRS Female Balanced/Unbalanced Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output
Audio Output Level	1/8″ / 3.5 mm Output: +6 dBV (Balanced) 1/8″ / 3.5 mm Output: 0 dBV (Unbalanced)
Frequency Response	20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity	1 x Micro-USB (Bus Power, Charging)
Power Requirements	Battery, Bus Power (USB)
Battery Type	1 x Built-In Rechargeable (Not Replaceable)
Internal Battery Capacity	1460 mAh
Battery Charging Time	4 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
Display & Indicators	1 x LCD (Battery Status, Channel, Mute, RF Level)
Housing	Plastic
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	2.2 x 3.6 x 1.1″ / 55.9 x 91.4 x 27.9 mm
Weight	3.7 oz / 104.9 g

Transmitter 1

Transmitter

Form Factor	Bodypack
RF Output Power	10 mW
Audio I/O	1 x Hirose cW-Style 4-Pin Male Input (Lockable)
Muting	Off/On Switch
Audio Input Level	(Mic Level, Instrument Level)
Frequency Response	20 Hz to 20 kHz
Antenna	1 x External, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	2 x AA (Not Included)
Approx. Battery Life	7 Hours (Alkaline)
Display & Indicators	1 x LCD (Channel)
Housing	Plastic
Dimensions	2.7 x 4.2 x 0.9″ / 68.6 x 106.7 x 22.9 mm
Weight	3.5 oz / 99.2 g

Microphone

Form Factor	Lavalier
Sound Field	Mono
Operating Principle	Pressure Operated
Capsule	1 x Electret Condenser
Polar Pattern	Omnidirectional
Windscreen	Foam (Included)
