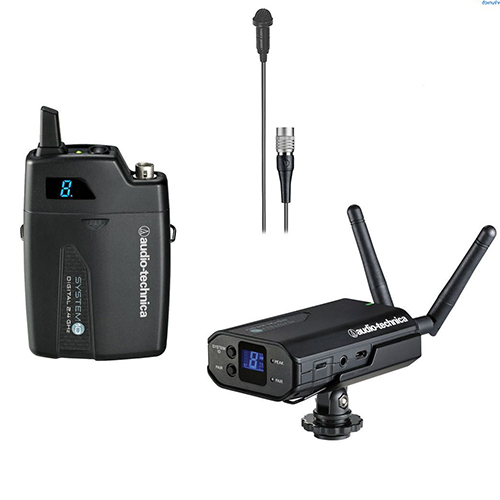

ไมโครโฟน Camera-Mount Wireless ยี่ห้อ Audio-Technica รุ่น ATW-1701/MT838cW
The Audio-Technica System 10 ATW-1701 is a digital wireless microphone system specifically engineered to meet the audio needs of vloggers, mobile journalists, and videographers. It provides an easy-to-operate solution with sophisticated technology to ensure reliability and high-quality audio for projects ranging from YouTube and wedding videos to corporate spots and interviews.
The ATW-1701 features a bodypack transmitter with a cW-style 4-pin locking connector, allowing you to plug in a compatible lavalier or headset mic of your choice. The camera-mount receiver connects to your DSLR or mirrorless camera with the included 3.5mm output cable. The System 10 operates anywhere in the world, transmitting 24-bit/48 kHz audio in the 2.4 GHz spectrum, well away from potential TV and radio interference.
This peer-to-peer system delivers three levels of diversity assurance—frequency, time, and space—for optimal performance at a range up to 100′. Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing before a shoot. Up to eight wireless mics may be used on set at once.
Features
- Plug & Record Set for DIY Videographer
- Audio Technica cW-Style 4-Pin Connection
- Bodypack Transmitter
- Triple-Diversity Camera-Mount Receiver
- Protected Peer-to-Peer Connection
- Easy to Use, Flexible Operation
- Balanced Output & Headphone Output
- 7-Hr Batteries + USB Power
- Up to 8 Mics on Set / 100′ Range
Specifications
| Wireless Transmission | Digital 2.4 GHz |
| Included Transmitters | 1 x Bodypack |
| Diversity | Frequency, Time & Space Diversity |
| RF Frequency Band | 2400 to 2483.5 MHz |
| Max Operating Range | 100′ / 30.5 m (Line of Sight) |
| Max Systems per Setup | 8 |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Dynamic Range | >109 dBA |
| Form Factor | Camera-Mount |
| Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) |
| Antenna | 2 x External, Detachable |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Female Balanced/Unbalanced Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output |
| Audio Output Level | 1/8″ / 3.5 mm Output: +6 dBV (Balanced) 1/8″ / 3.5 mm Output: 0 dBV (Unbalanced) |
| Frequency Response | 20 Hz to 20 kHz (Dependent on Mic) |
| USB/Lightning Connectivity | 1 x Micro-USB (Bus Power, Charging) |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 1 x Built-In Rechargeable (Not Replaceable) |
| Internal Battery Capacity | 1460 mAh |
| Battery Charging Time | 4 Hours |
| Approx. Battery Life | 12 Hours (Lithium Rechargeable) |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Mute, RF Level) |
| Housing | Plastic |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 2.2 x 3.6 x 1.1″ / 55.9 x 91.4 x 27.9 mm |
| Weight | 3.7 oz / 104.9 g |
| Form Factor | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x Hirose cW-Style 4-Pin Male Input (Lockable) |
| Muting | Off/On Switch |
| Audio Input Level | (Mic Level, Instrument Level) |
| Frequency Response | 20 Hz to 20 kHz |
| Antenna | 1 x External, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 7 Hours (Alkaline) |
| Display & Indicators | 1 x LCD (Channel) |
| Housing | Plastic |
| Dimensions | 2.7 x 4.2 x 0.9″ / 68.6 x 106.7 x 22.9 mm |
| Weight | 3.5 oz / 99.2 g |
| Microphone | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Weight | Microphone : 7.7 g |
| Cable | 1.4 m (55″) long (permanently attached to microphone), 1.6 mm (0.06″) diameter, 2-conductor shielded cable with HRS 4-pin connector |
| Dimensions | Microphone: 21.5 mm long, Ø 6.5mm |
