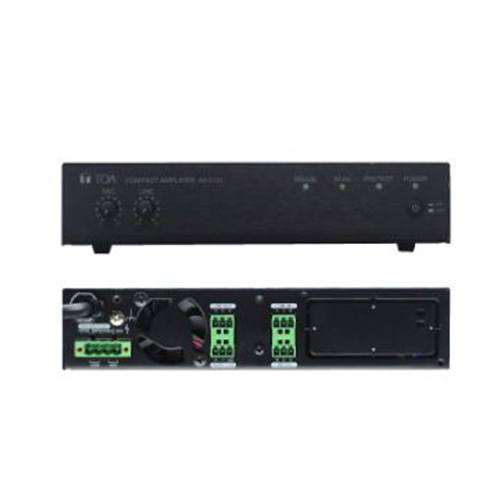

เครื่องขยายเสียง ยี่ห้อ TOA รุ่น AX-0120
SPECIFICATION
| Specification | AX-0120 |
|---|---|
| Power Source | 220 V AC, 50Hz |
| Amplification System | Class D |
| Power Consumption | 40W (According to En62368-1 standard)
152W (rated output) |
| Audio Input | MIC IN: -60dB* 2.2kΩ, electronically-balanced, removable terminal block (3 pins)
LINE IN: -10dB* 2.2kΩ, electronically-balanced, removable terminal block (3 pins) |
| Audio Output | SPEAKER OUT: 120W (100V/83Ω), removable terminal block (4P)
LINE OUT: 0dB*, 10kΩ electronically-balanced, removable terminal block (3 pins) |
| Fault Output | Octocopter output, puncture: DC 35V, control current: below 50mA, removable terminal block (3 pins) |
| Frequency Response | 50Hz – 20kHz ±3dB (Line) |
| Total Harmonic Distortion | 1% (LINE:1kHz,1/3 rated output, with audio filter: audio precision AUX-0025 and LPF 20kHz filter) |
| S/N Ratio | MIC: Above 60dB (by audio filter: audio precision AUX-0025 and A-weighted)
LINE: Above 80dB (by audio filter: audio precision AUX-0025 and A-weighted) |
| Control | MIC gain control, LINE gain control |
| Indicator | Power LED (green) x 1, Signal LED (green) x 1, Peak LED (red) x 1, Protect output LED (red) x 1 |
| Cooling | Forced air cooling |
| Operation Temperature | -10ºC – +40ºC |
| Operation Humidity | Below 90% RH (no condensation) |
| Finish | Surface-treated steel plate, black, paint |
| Dimensions ( W x H x D) | 210 x 50 x 290 mm |
| Weight | 2.16 kg |
| Accessories | Removable terminal block(3 pins) x 4 ; removable terminal block(4 pins) x 1 ; M3x4 screws for mounting brackets x 12 |
| Option | Rack mount bracket MB-15B-BK, MB-15B-J, MB-15B, YA-706, IP-100XI |
