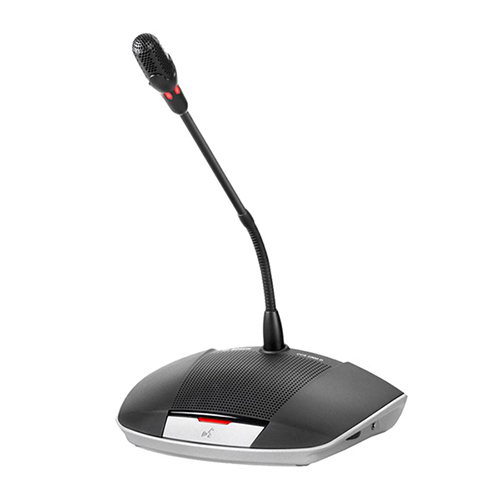

ไมค์ประชุมแบบก้านยาว 31 ซม ยี่ห้อ BOSCH รุ่น CCSD-DS

Discussion Devices are connected in a daisy‑chain configuration to the Control Unit (CCSD‑CU or CCSD‑CURD) of a CCS 1000 D Digital Discussion System. Their plug‑and‑play functionality allows them to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary, which ensures fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built‑in loudspeaker or (optional) headphones.

Technical specifications
Electrical

• Power consumption 1.3 W
• Frequency response 30 Hz to 20 kHz (System electrical)
• THD <0.5 %
• S/N >93 dBA
• Sampling rate 44.1 kHz
• Headphones load impedance > 32 ohms < 1k ohm
• Loudspeaker max. peak output power 4 W

Acoustical

• Loudspeaker nominal output 72 dB SPL
• Participants loudspeaker frequency response 200 Hz to 16 kHz (acoustical)
• Microphone polar pattern Cardioid
• Participants microphone frequency response 125 Hz to 15 kHz
• Microphone nominal input 85 dB SPL

Mechanical

• Dimensions device without microphone (H x W x D) 64 x 203 x 146 mm (2.5 x 8.0 x 5.7 in)
• Height with microphone in horizontal position 130 mm (5.1 in)
• Length of microphone from mounting surface CCSD‑DS: 310 mm (12.2 in)  CCSD‑DL: 480 mm (18.9 in)
• Weight Approx. 1 kg (2.2 lb)
• Mounting Tabletop (portable or fixed)
• Material (top) Plastic ABS+PC
• Material (base) Metal ZnAl4
• Color (top) Traffic black (RAL 9017) mattgloss
• Color (base) Pearl light grey (RAL 9022) mattgloss

Environmental

• Operating temperature 0 ºC to +35 ºC (+32 ºF to +95 ºF)
• Storage and transport temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Relative humidity 5% to 98% non-condensing
• Air pressure 600 to 1100 hPa
