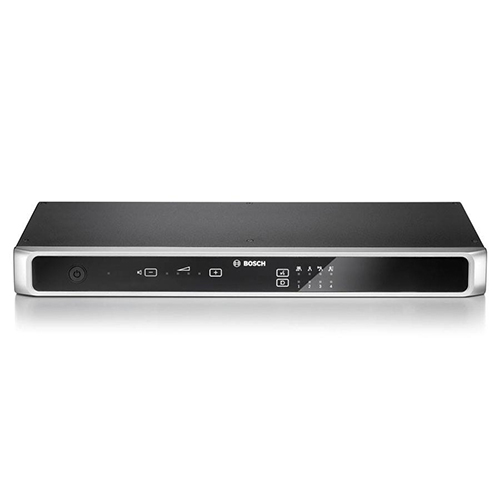

ชุดควบคุมและแหล่งจ่ายไฟ ยี่ห้อ BOSCH รุ่น CCSD-CU

The Control Unit is the main component of the CCS 1000 D Digital Discussion System. It supplies DC power to all connected Discussion Devices (CCSD‑DS/ CCSD‑DL) and monitors and controls the discussion system.

• Up to 80 Discussion Devices can be connected to a single Control Unit; the system can be expanded to a maximum of 245 Discussion Devices by using Extension Units (CCSD‑EXU).
• Touch‑button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings.
• Conveniently positioned connections at the rear of the unit enable peripheral equipment to be connected to the discussion system, such as audio equipment, Ethernet switches, video switches, Bosch HD Conference Domes, and a PC or laptop.
• An intuitive web browser interface control allows  basic and advanced system settings to be easily viewed and changed, as required.

Technical specifications
Electrical

• Supply voltage Adaptor 100 to 240 VAC, 50/60 Hz
• Current Consumption voltage Adaptor 1.9 A (100 VAC) to 1 A 240 (VAC)
• DC voltage Control Unit 24 V, 6.0 A
• Maximum number of Discussion Devices for Control Unit (without Extension Unit)  40 Discussion Devices per trunk 80 Discussion Device in total 24 V, Max 5.2 A (short-circuited protected)
• Discussion Device loudspeakers volume control 15 steps of 1.5 dB (starting from-10.5 dB)
• Limit threshold level to unit 12 dB above nominal level
• Gain reduction due to number of open microphones (NOM) 1/SQRT (NOM)
• Sample rate 44.1 kHz
• Frequency response 30 Hz to 20 kHz
• Ethernet speed 1 Gb/s

Total Harmonic Distortions (THD)

• Nominal input (85 dB SPL) < 0.5%
• Max. input (110 dB SPL) < 0.5%

Audio inputs

• XLR nominal microphone input -56 dBV
• XLR maximum microphone input -26 dBV
• RCA nominal input -24 dBV (+/- 6 dB)
• RCA maximum input +6 dBV
• S/N > 93 dBA
• Frequency response 30 Hz to 20 kHz
• THD <0.1%

Audio outputs

• RCA nominal output -24 dBV (+6/- 24 dB)
• RCA maximum output +6 dBV
• S/N > 93 dBA
• Frequency response 30 Hz to 20 kHz
• THD <0.1%

Mechanical

• Dimensions including feet (H x W x D) 45 x 440 x 200 mm (1.8 x 17.3 x 7.9 in) 19” wide, 1 RU high
• Height of feet 5.5 mm (0.2 in)
• Mounting Tabletop or 19 “ rack
• Material (top and base) Painted metal
• Color (top and base) Traffic black (RAL 9017) mattgloss
• Rim front panel Pearl light grey (RAL 9022) mattgloss
• Weight (CCSD‑CU) Approx. 3.2 kg (7.1 lb)

Environmental

• Operating temperature 5 ºC to +45 ºC (+41 ºF to +113 ºF)
• Storage and transport temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Relative humidity 5% to 98% non-condensing
