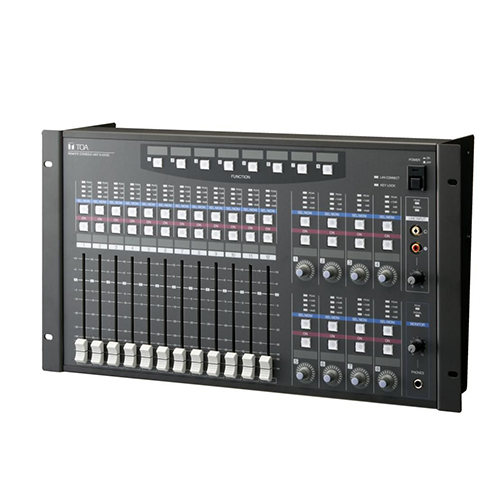

Remote Console Unit ยี่ห้อ TOA รุ่น D-2012C CE
The D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C’s 12 motorized faders and 8 rotary encoders can remotely adjust their volumes. Desired preset memories can be recalled using 8 function keys. It is equipped with 1 channel line input (stereo), which allows the audio signal to be transmitted to the D-2008SP via monitor bus. Audio signals inside the D-2008SP can be monitored via monitor bus through headphones connected to a stereo headphone output. The D-2012C can be installed on a desk with the additional use of an optional D-2012AS Console Case.
Specification
| Power Source | 220 – 240 V AC |
|---|---|
| Power Consumption | 18 W |
| Volume Adjustment | 100 mm motorized fader x 12 Rotary encoder x 8 |
| Line Input | 1 channel (stereo) |
| Headphone Output | Stereo 100 mW + 100 mW (32 Ω load) |
| Monitor Bus | 1 stereo input Connector: RJ45 connector Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable (2 pairs of data lines) Maximum cable distance: 100 m (109.36 yd) (between D-2012C and D-2008SP) |
| LAN | Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) RJ45 connector Network protocol: TCP/IP Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable Maximum cable distance: 100 m (109.36 yd) (between D-2008SP and switching hub) |
| Control | RS-232C: D-sub connector (9 pins) for maintenance use |
| Finish | Panel: Surface-treated steel plate Rack mounting bracket: Surface-treated steel plate |
| Dimensions | 482 (W) × 266 (H) × 138 (D) mm (18.98 × 10.47″ × 5.43) |
| Weight | 6.6 kg (14.55 lb) |
| Accessory | Power cord (2 m (6.5 ft)) ……1 Fader knob (yellow) ……3 |
| Option | Console case: D-2012AS |
