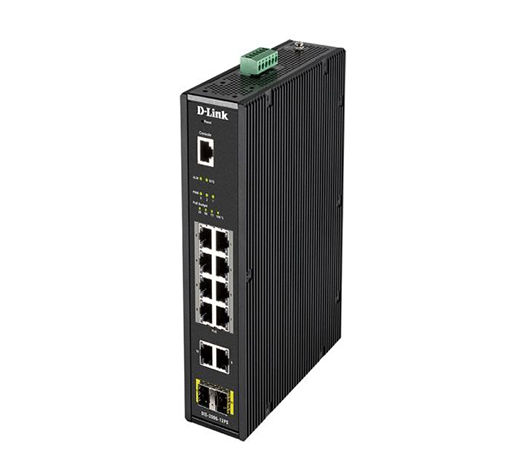

Access Point ยี่ห้อ D-Link รุ่น DIS-200G-12PS
| General | |
| Hardware Version | A1 |
| Number of Ports | 8 x 10/100/1000BASE-T PoE ports |
| 2 x 10/100/1000BASE-T ports | |
| 2 x SFP ports | |
| 1 x RJ-45 Console port | |
| Port Functions | IEEE 802.3 for Ethernet |
| IEEE 802.3u for Fast Ethernet | |
| IEEE 802.3ab for Gigabit Ethernet | |
| IEEE 802.3z for Gigabit fiber | |
| IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS/DIS-200G-12PSW) | |
| IEEE 802.3az-compliant | |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all twisted pair ports |
| Performance | |
| Switching Capacity | 24 Gbps |
| Maximum Forwarding Rate | 17.85 Mpps |
| MAC Address Table Size | Up to 8K entries |
| Transmission Method | Store-and-forward |
| PoE | |
| PoE Standards | IEEE 802.3af/at |
| PoE Capable Ports | Ports 1 to 8 |
| PoE Capable Ports | Max. 240 W |
| Physical | |
| Diagnostic LEDs | SYS |
| ALM | |
| PWR1/2/3 | |
| Link/Activity/Speed | |
| PoE status | |
| PoE budget | |
| Power Input | 48 to 54 V DC terminal block dual input |
| 54 V DC 4-pin DIN single power input | |
| Power Consumptions | Maximum: 260 W (PoE on) |
| Maximum: 10.8 W (PoE off) | |
| Standby: 7.02 W | |
| Alarm Relay | 1 A at 24 V |
| Heat Dissipation | 887.16 BTU/hr (PoE on) |
| 36.85 BTU/hr (PoE off) | |
| Weight | 1.76 kg (3.88 lbs) |
| Dimensions | 210 x 171.2 x 48 mm (8.27 x 6.74 x 1.89 in) |
| Ventilation | Fanless |
| Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Operating Humidity | 0% to 95% RH, non-condensing |
| Storage Humidity | 0% to 95% RH, non-condensing |
| Material | IP30-rated metal casing |
| Installation | DIN rail/wall/rack mountable |
| MTBF | 213,112 hours |
| Certifications | CE |
| FCC | |
| BSMI | |
| Safety | UL60950-1 |
| EMI | CISPR 22 |
| FCC Part 15B Class A | |
| EMS | EN 61000-4-2 ESD |
| EN 61000-4-3 RS | |
| EN 61000-4-4 EFT | |
| EN 61000-4-5 | |
| EN 61000-4-6 CS | |
| EN 61000-4-8 | |
| Environmental Tests | IEC 60068-2-27 Shock |
| IEC 60068-2-32 Freefall | |
| IEC 60068-2-6 Vibration | |
| Warranty | 3 Years |
