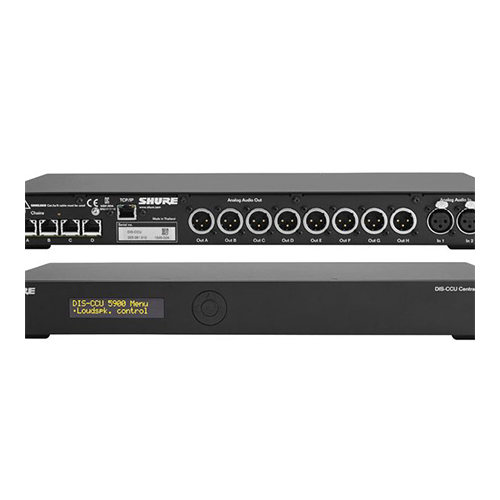

ชุดไมค์ประชุมระบบดิจิตอล ยี่ห้อ SHURE รุ่น DIS-CCU + PS-CCU-E-

Features

• Fully digital audio transmission of floor plus 31 interpretation channels and 8 conference microphone audio channels in a single digital bus cable structure using shielded CAT5e cables
• OLED display on the front enables the user to setup basic system configurations in terms of maximum number of speakers/requests, microphone operation mode, etc.
• TCP/IP Ethernet connection for web browser control, integration with optional SW 6000 software suite, or third party external control system (AMX, Crestron, etc.)
• Multi-language web browser for system configuration, microphone/request list control and basic operational parameters via tablet or computer
• Built-in seat table for attaching seat numbers and names to units using the web browser
• 2 Analog audio inputs
• 8 Analog audio outputs for distribution of audio from eight groups of units, the floor channel or the interpreter channels
• Connection for Emergency Evacuation Message (EEM) is available using ‘Audio In 2’ and a contact closure switch
• Firmware upgrade of the entire DCS 6000 system is possible via a PC
• Powers up to 60 units without additional power supply (depending on unit type)
• Long life, low-noise built-in temperature regulated fan
• Horizontal orientation of air stream for easy stacking of units in 19″ racks
• External control possible via a ‘simple to use’ protocol for external control over Ethernet
• Using DCS-LAN, a proprietary high-speed all-digital audio channel, data and power bus
• Four DCS-LAN chains powered by one external PS CU power supply
• Versatile test program available for testing the system performance, the conference units and the interpreter sets
• Video-follow-audio camera control with optional CP 7890 Camera Control System
• Control of microphone units serving up to 3,800 participants
• Voting (1- to 5-button, with or without attendance check)
