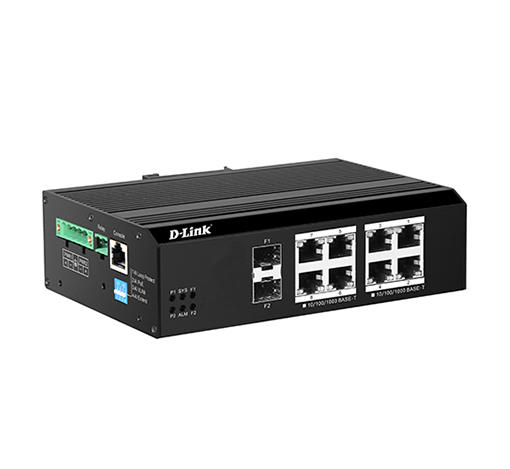

Access Point ยี่ห้อ D-Link รุ่น DIS-F2010PS-E
| General | DIS-F2010PS |
| Hardware Version | A1 |
| Number of Ports | 8X 10/100/1000 Base-T ports |
| 2X SFP ports | |
| 1 X RJ-45 Console Port | |
| Port Functions | IEEE 802.3 for Ethernet |
| IEEE 802.3u for Fast Ethernet | |
| IEEE 802.3ab for Gigabit Ethernet | |
| IEEE 802.3z for Gigabit fiber | |
| IEEE 802.3af/at Power over Ethernet | |
| IEEE 802.3az-compliant | |
| Media Interface Exchange | |
| Switching Capacity | 20 Gbps |
| Maximum Forwarding Rate | 14.88 Mpps |
| MAC Address Table Size | Up t8K entries |
| Transmission Method | Store-and-forward |
| PoE Standards | IEEE 802.3af/at |
| PoE Capable Ports | Ports 1 t8 (Up t250m) |
| PoE Power Budget | Max 240W |
| Diagnostic LEDs | SYS |
| ALM | |
| PWR 1/2 | |
| Link/Activity/Speed | |
| PoE Status | |
| Power Input | 48 to 56 VDC terminal block dual input |
| 54 VDC 4-pin DIN single power input | |
| Power Consumptions | Maximum: 250 W (PoE on) |
| Maximum: 10 W (PoE off) | |
| Weight | 1 Kg |
| Dimensions | 163 x 46.5 x 110 mm |
| Ventilation | Fanless |
| Operating Temperature | -40 t75 ?C (-40 t167 ?F) |
| Storage Temperature | -40 t75 ?C (-40 t167 ?F) |
| Operating Humidity | 5% t95% RH, non-condensing |
| Storage Humidity | 5% t95% RH, non-condensing |
| Material | IP40-rated metal casing |
| Installation | DIN rail/wall |
| MTBF | 360,000 hours |
| Warranty | 3 Years |
