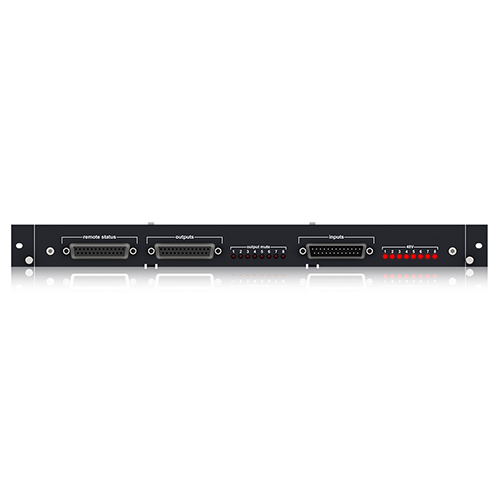

อินเตอร์เฟส Card ยี่ห้อ MIDAS รุ่น DL444
Analogue 8 Input, 8 Output Card with Midas Microphone Preamplifiers and D-Type Connectors
Features
- Award-winning Midas microphone preamplifiers with switchable +48 V phantom power
- Low latency 24 bit 96 kHz ADC and DAC converters
- 8 inputs with selectable microphone or line level on a 25 way D-type connector
- 8 electronically balanced line outputs on a 25 way D-type connector
- High output current drive for long cable runs
- +48 V and Output mute LEDs per channel with remote status monitoring 25 way D-type connector
- Compatible with Midas PRO3, PRO6, PRO9, PRO X, DL351 and DL451
Specification
System
| Sample rate | 96 kHz |
| Dynamic range | >110 dB unweighted (20 Hz – 20 kHz) |
| Maximum input level | Mic/Line (Unity Gain) +21 dBu Mic/Line (-2.5 dB Gain) +24 dBu |
| Maximum output level | +21 dBu |
| CMRR @ 1 kHz | Mic Input (Unity Gain) Typically >70 dB Mic Input (45 dB Gain) Typically >90 dB |
| Mic EIN (45 dB Gain) | -127 dBu |
| Noise (Unity gain) | <-89 dBu unweighted (20 Hz – 20 kHz) |
| Frequency response | ±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz) |
| THD+N (Unity Gain) | <0.01% |
| Crosstalk @ 1 kHz | <-90 dB |
| Input impedance | 10k O |
| Output impedance | 50 O |
| Connectors | 25 way D connectors Balanced |
| Phantom power | +48 V, individually switchable per channel |
