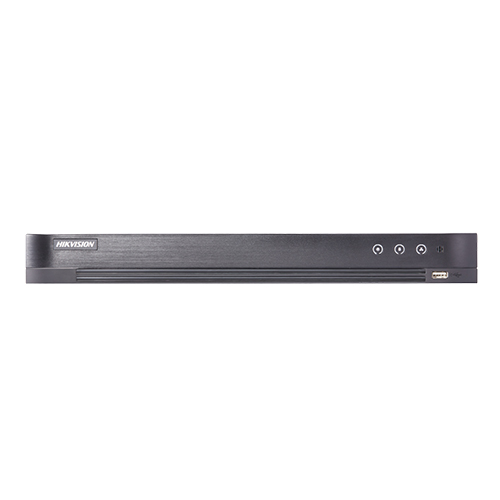

เครื่องบันทึก DVR 16CH ยี่ห้อ Hik-Vision รุ่น DS-7216HQHI-K2/P
- Self-adaptive normal camera and Hikvision PoC camera connection
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 3 MP resolution for recording
- Automatic power supply management for PoC camera to guarantee safety
- Long distance transmission over UTP and coaxial cable
- 4/8/16-ch synchronous playback
| Brand | HIKVISION |
| Model | DS-7216HQHI-K2/P |
| Supported Camera Types | AHD / TVI / CVI / Analog / IP |
| Video/Audio input | Video Input : 16CH (4MP) IP Video Input : 16+8CH (6MP) Video compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Audio input : 1CH, RCA (2.0Vp-p, 1KΩ) Two-way audio : 1CH, RCA (2.0Vp-p, 1KΩ) (using the first audio input) |
| Video/Audio output | HDMI output : 4K(3840×2160)/30Hz, 2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA output : 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Frame rate : 30fps Audio output : 1CH, RCA (Linear, 1KΩ) |
| Network | User Access : 128 Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Interface | 16 x VIDEO IN 1 x HDMI 1 x VGA 1 x RJ45 1 x AUDIO IN/OUT 1 x USB |
| Storage | Slot : 2 SATA Capacity : Up to 10 TB |
| Power Supply | 48VDC |
| Power Consumption | ≤ 120W |
| Working Environment | Working temperature : -10 °C to +55 °C (+14 °F to +131 °F) Working humidity : 10% to 90% |
| ONVIF | Support |
| PoE | N/A |
| Package Contents | N/A |
| Dimension | (W x D x H) : 38.00 x 32.00 x 4.80 cm |
| Net Weight | 2.00 KG |
| Package Dimension | (W x D x H) : 39.00 x 44.00 x 13.00 cm |
| Gross Weight | 3.56 KG |
| Volume | 22,308.00 cm3 |
