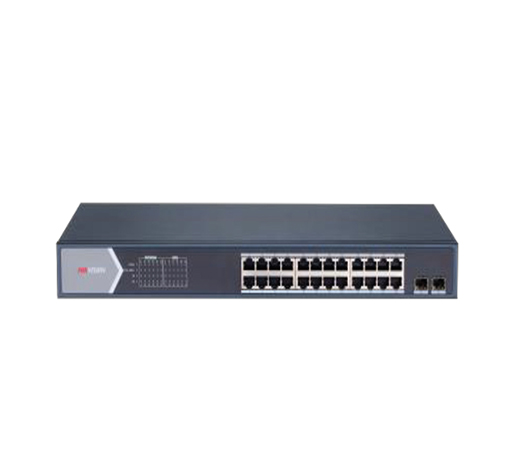

Smart Managed 24-Port Gigabit PoE Switch

• 24 x Gigabit PoE Ports
• 2 x Gigabit Fiber Optical Ports
• IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE 802.3ab, IEEE 802.3z
• Store-and-forward switching
• PoE Watchdog ( auto detect and restart the cameras )
• Standard Mode / Extend Mode (long Range)
• MAC Address table 8K
• Switch capacity 52Gbps
• Packet Forwarding Rate 36.688 Mbps
• Interal Cache 4.1Mbits
• Max. Port Power 30W
• PoE power budget 370W

SOFTWARE FUNCTION

Device Maintenance

• Support Remote Upgrade
• Recovering Default Parameters
• Viewing Logs
• Configuring basic Network Parameters
• Import and Export Configuration
• Time Sync

PoE Watchdog ( auto detect and restart the cameras )

• Weight : 2.975kg
• Dimension (LxHxD) 440mm x 44mm x 221mm
• Power Supply 100-240 VAC, 6.5A
• Max. power consumption 400W
