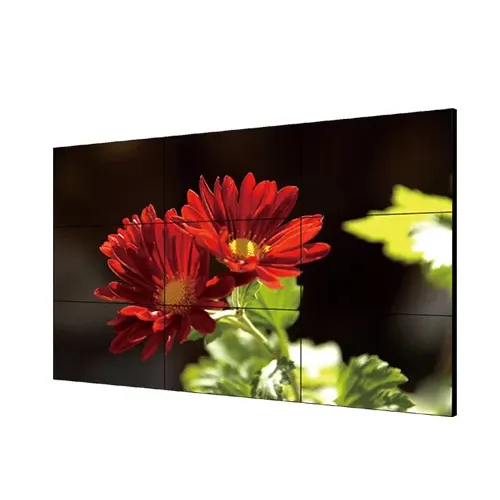

Video Wall ยี่ห้อ Hikvision รุ่น DS-D2049LU-Y

Display

• Screen Size49 inch
• BacklightDirect-lit LED backlight
• Pixel Pitch0.56 mm
• Physical Seam3.5 mm
• Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
• Resolution1920 × 1080@60 Hz (downward compatible)
• Active Display Area1074.24 (H) mm x 604.26 (V) mm
• Brightness500 cd/m²
• Viewing AngleHorizontal 178°, vertical 178°
• Color Depth8 bit, 16.7 M
• Contrast Ratio1200:1
• Response Time8 ms (G to G)
• Color Gamut72% NTSC
• Surface TreatmentHaze 25%, 3H

Interface

• Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1
• Video & Audio OutputHDMI × 1
• Control InterfaceRS232 IN × 1, RS232 OUT × 1

Power

• Power Supply100-240 VAC, 50/60 Hz
• Power Consumption≤ 200 W
• Standby Consumption≤ 0.5 W

Working Environment

• Working Temperature0°C to 40°C (32°F to 104°F)
• Working Humidity10% to 80% RH (non-condensing)
• Storage Temperature-20°C to 60°C (-4°F to 140°F)
• Storage Humidity10% to 90% RH (non-condensing)

General

• Casing MaterialSGCC
• VESA600 (H) mm × 400 (V) mm
• Product Dimension (W × H × D)1078.34 mm × 608.36 mm× 71.1 mm (42.45″× 23.95″× 2.8”)
• Package Dimension (W × H × D)1292(W) mm × 828 (H) mm × 218 (D) mm
• Net Weight19.4 ± 0.5 kg (42.8 ± 1.1 lb) for single display
• Gross Weight36.0 ± 0.5 kg (79.4 ± 1.1 lb) for carton with a single display
• Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
