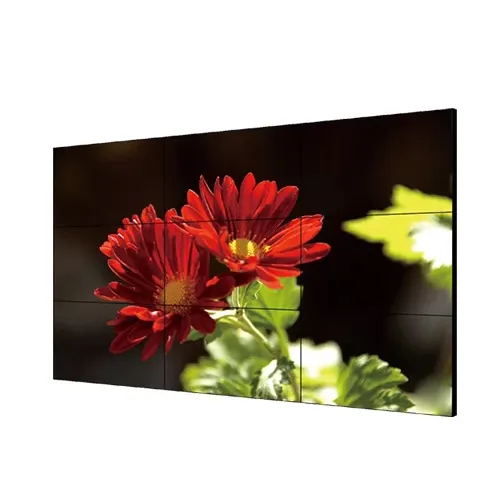

Video Wall ยี่ห้อ Hikvision รุ่น DS-D2055UL-1B

Display

• Screen Size55 inch
• Active Display Area1209.6 (H) mm × 680.4 (V) mm
• BacklightDirect-lit LED backlight
• Pixel Pitch0.63 mm
• Physical Seam3.5 mm
• Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
• Resolution1920 × 1080@60 Hz (downward compatible)
• Brightness500 cd/m²
• Viewing AngleHorizontal 178°, vertical 178°
• Color Depth8 bit, 16.7 M
• Contrast Ratio1200:1
• Response Time7.5 ms
• Color Gamut72% NTSC
• Surface TreatmentHaze 25%

Interface

• Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1
• Video & Audio OutputHDMI × 1
• Control InterfaceRS232 IN × 1, RS232 OUT × 1

Power

• Power Supply100-240 VAC, 50/60 Hz
• Power Consumption≤ 245 W
• Standby Consumption≤ 0.5 W

Working Environment

• Working Temperature0°C to 40°C (32°F to 104°F)
• Working Humidity10% to 80% RH (non-condensing)
• Storage Temperature-20°C to 60°C (-4°F to 140°F)
• Storage Humidity10% to 90% RH (non-condensing)

General

• Casing MaterialSGCC
• VESA600 (H) mm × 400 (V) mm
• Product Dimension (W × H × D)1213.5 mm × 684.5 mm × 71.19 mm (47.78” × 26.94′ × 2.8”)
• Package Dimension (W × H × D)1404(W) mm × 910 (H) mm × 231 (D) mm
• Net Weight19.8 ± 0.5 kg (43.7 ± 1.1 lb) for single display
• Gross Weight33.6 ± 0.5 kg (74.1 ± 1.1 lb) for carton with a single display
• Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
