ตู้ลำโพง ยี่ห้อ YAMAHA รุ่น DXR8

• High-powered portable loudspeaker with multi-use flexibility
• 8″ speaker, powered by 700W in a 2-way design
• Built-in 3-channel mixer lets you connect microphones or line-level sources directly without an entire PA system
• Built-in DSP for phase optimization and transparent dynamic control
• ABS cabinet is durable with a low-resonance design for maximum sound quality

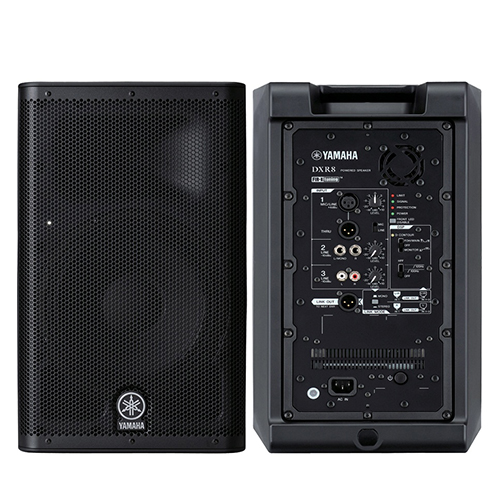

Yamaha DXR8 is a compact active PA speaker system, and is part of the DXR loudspeaker series. Designed in collaboration with NEXO, world leaders in sound reinforcement, the DXR series draws on decades of speaker experience.

The Yamaha DXR8 builds on the success of the acclaimed DSR Series by combining the latest acoustic technologies with advanced digital sound processing to deliver unpresidented performance in a compact and lightweight system.

The DXR8 features an 8-inch low-frequency driver, and 1.4-inch high-frequency driver powered by a Class-D amplifier delivering 1100W of dynamic power. Overseen by NEXO, the class-leading DXR8 encompasses intelligent 48-bit precision DSP with sophisticated “D-Contour” multi-band dynamic processing, FIR-X digital crossover filtering and DSP controlled protection throughout the signal chain.

The Yamaha DXR8 also features a convenient integrated 3-channel mixer and advanced smart linking function with stereo/mono option. Front and rear pole-mounting is available as well rigging points for flying or using the optional U-brackets (sold separately). All DXR systems can be fully expanded by adding DXS subwoofers (see related items on the right).

The Yamaha DXR8 main features include:

• 8-inch low-frequency driver and 1.4″ high-frequency driver
• Class-D Amplifiers deliver 1100W of dynamic power
• 129dB maximum SPL
• 57Hz to 20kHz frequency range
• Sophisticated “D-CONTOUR” multi-band dynamic processor
• FIR-X Digital Crossover Filtering
• 48-bit precision
• DSP controlled protection throughout the signal chain
• Intelligent on-board 3-channel mixer
• Smart linking function with stereo/mono option
• Front and rear pole-mounting
• Flyable via provided M10 rigging points or using optional U-brackets
• System expandable through adding DXS subwoofers: DXS12 or DXS15
• Weight: 13.5kg
• Designed in collaboration with NEXO
