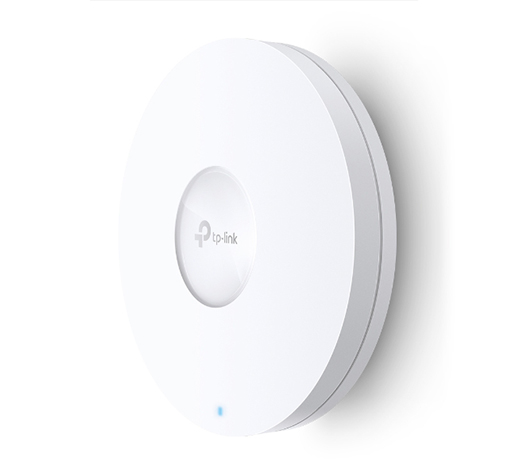

Access Point ยี่ห้อ TP-Link รุ่น EAP660HD
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Signal Rate : Wireless AX3600
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 1148 Mbps
- Interface : 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Power Supply : 802.3at PoE , 12V DC (Power Adapter included)
- Mounting : Ceiling /Wall Mounting
- Antenna Type : Internal Omni Antenna ( 2.4GHz: 4*4dBi , 5GHz: 4*5dBi )
- Wireless Client Capacity : 1000+
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.?
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
| Brand | TP-LINK |
| Model | EAP660-HD |
| Standards | EEE 802.11ax/ac/n/g/b/a |
| Antennas | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Transmit/Receive | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP) • FCC: |
| Frequency | 2.4 GHz and 5 GHz |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming? • Omada Mesh? • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Interface | 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Data Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Management | Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Power Supply | • 802.3at PoE • 12 V DC |
| Power Supply (PoE) | 802.3at PoE |
| Power Consumption | • EU: 18.5 W • US: 21.5 W35 |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP660 HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide |
| Dimension | (W x D x H) : 24.30 x 24.30 x 6.40 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 30.00 x 30.00 x 8.00 cm |
| Gross Weight | 1.46 KG |
| Volume | 7,200.00 cm3 |
