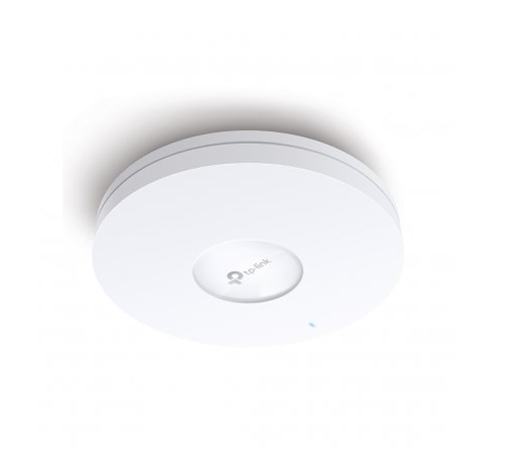

Access Point ยี่ห้อ TP-Link รุ่น EAP670
- Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
- Signal Rate : Wireless AX5400
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574+ Mbps
- Interface : 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Power Supply : 802.3at PoE , 12V/1.5A DC (Power Adapter included)
- Mounting : Ceiling /Wall Mounting
- Antenna Type : Internal Omni Antenna ( 2.4GHz: 2*4dBi , 5GHz: 4*5dBi )
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
| Brand | TP-LINK |
| Model | EAP670 |
| Standards | IEEE 802.11ax/ac/n/g/b/a |
| Antennas | Internal Omni – 2.4 GHz: 2× 4 dBi – 5 GHz: 4× 5 dBi |
| Transmit/Receive | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP) FCC: |
| Frequency | 2.4 GHz 5 GHz |
| Wireless Functions | 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO HE160 (160 MHz Bandwidth)‡ Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Interface | 1 × 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Data Rate | 5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 574 Mbps |
| Operation Mode | Access Point |
| Management | Omada App Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 System Logging Local/Remote Syslog : Local/Remote Syslog SSH Web-based Management : HTTP/HTTPS L3 Management Multi-site Management Management VLAN |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Power Supply | 12 VAC |
| Inrush Current | 1.5 ADC |
| Power Supply (PoE) | 802.3at PoE |
| Power Consumption | N/A |
| Environment | Operating Temperature : 0 – 40°C (32 – 104°F) Storage Temperature : -40 – 70°C (-40 – 158°F) Operating Humidity : 10 – 90% RH non-condensing Storage Humidity : 5 – 90% RH non-condensing |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP670 Power Adapter Ceiling/Wall Mounting Kits Installation Guide |
| Dimension | (W x D x H) : 24.30 x 24.30 x 6.40 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 30.00 x 30.00 x 8.00 cm |
| Gross Weight | 1.30 KG |
| Volume | 7,200.00 cm3 |
