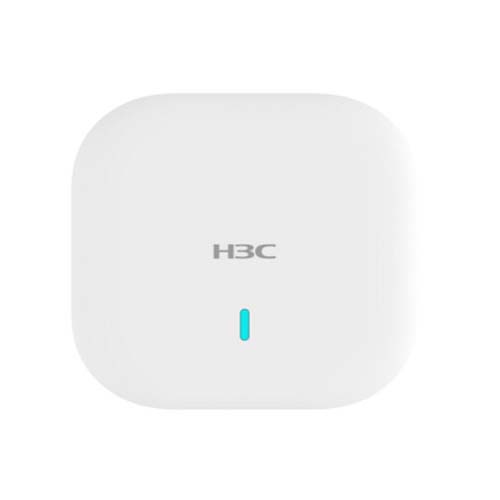

Access Point ยี่ห้อ H3C รุ่น EWP-WA6330-FIT
| Name | WA6330 |
| Weight(excluding mounting accessories) | 0.94Kg |
| Dimensions(excluding mounting and accessories) | 210mm×210mm×45mm |
| Ethernet ports | Two（one for 100/1000M/2.5G Rj45，one for 100/1000M Rj45 support IoT）support LACP(support between both network ports for redundancy and increased capacity) |
| PoE | Port1: 2.5GE:802.3at/802.3afPort2: GE:PSE,802.3af |
| Local Power supply | 54V DC |
| Console port | One（RJ-45） |
| Built-in antenna | Built-in omni-directional antennaRadio 1 : 5dBi antenna gain @ 5G
Radio 2 : 5dBi antenna gain @ 5G Radio 3 : 5dBi antenna gain @ 2.4G or 5dBi antenna gain @ 5G |
| Built-in Bluetooth | Built-in Bluetooth(Support to switch RFID through software), support iBeacon standard |
| IoT Extension | Support BLE、RFID、ZigBee,etc. |
| Working frequencies | 802.11ax/ac wave2/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz802.11ax/b/g/n : 2.4GHz-2.483GHz |
| Modulation technology | OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54MbpsDSSS :DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps(file://dbpsk@1mbps、dqpsk@2mbps、cck@5.5/11Mbps)
MIMO-OFDM （11n）: MCS 0-31 MIMO-OFDM （11ac）: MCS 0-11 MIMO-OFDM （11ax）: MCS 0-11 |
| Modulation mode | 11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM 11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM |
| Maximum transmit power | 20 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity | 1dBm |
| Reset/restoration to factory default | Supported |
| State LED | Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Working Temperature/Storage Temperature | -10ºC～55ºC(32°F to 113°F)/-40ºC～70ºC(–40°F to +158°F) |
| Working Humidity/Storage Humidity | 5%~95%(non-condensing) |
| Protection class | IP42 |
| Overall power consumption | ≤34W（excluding IoT modules） |
| Safety compliance | GB4943、EN60601-1-2(medical electrical equipment)、UL/CSA 60950-1、EN/IEC 60950-1、EN/IEC 60950-22 |
| EMC | GB9254、EN301 489、EN55022、FCC Part 15、RSS-210 |
| Radio frequency certification | FCC Part 15、EN 300 328、EN 301 893、and MIIT SRRC |
| Health | FCC Bulletin OET-65C、EN 50385、IC Safety Code 6 |
| MTBF | >250000H |
