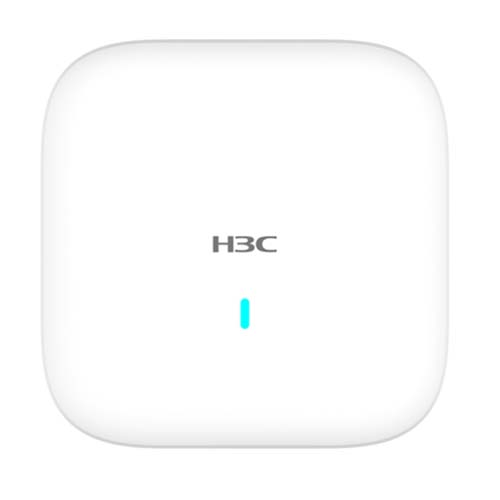

Access Point ยี่ห้อ H3C รุ่น EWP-WA6622-FIT
| Weight | 0.94 kg | 1.28 kg | 1.28 kg | |
| Dimensions (H × W × D) | 43 × 210 × 210 mm (1.69 × 8.27 × 8.27 in) | 52 × 239 × 236 mm (2.05 × 9.41 × 9.29 in) | 52 × 239 × 236 mm (2.05 × 9.41 × 9.29 in) | |
| Uplink Ethernet ports | Port 1: 100M/1000M/2.5G/5G, RJ-45Port 2: 100/1000M, RJ-45, IoT | Port 1: 100/1000M/2.5G/5G/10G, RJ-45Port 2: 100/1000M, RJ-45 | Port 1: 100/1000M/2.5G/5G/10G, RJ-45Port 2: 100/1000M, RJ-45 | |
| PoE+ | Port 1: 802.3at/af | Port 1: 802.3bt/atPort 2: 802.3at
Both ethernet ports support PoE and they can work simultaneously |
Port 1: 802.3bt/at | |
| Local power supply | 54 VDC | 54 VDC | 54 VDC | |
| Passive Power over Ethernet (48V) | Supported | Supported | Supported | |
| PoE power out | Port 2 (GE) | Not supported | Port 2 (GE) | |
| Console port | One (RJ-45) | |||
| USB port | One | |||
| Built-in antenna | Built-in omni-directional antenna5dBi antenna gain@2.4GHz
5dBi antenna gain @5GHz |
Built-in omni-directional antenna3dBi antenna gain @2.4GHz
4dBi antenna gain @5GHz |
Built-in omni-directional antenna3dBi antenna gain @2.4GHz
4dBi antenna gain @5GHz 4dBi antenna gain @5GHz |
|
| Built-in Bluetooth | Supported (Support to switch RFID through software) | |||
| IoT Extension | BLE, RFID, ZigBee, etc. | Not supported | BLE, RFID, ZigBee, etc. | |
| Working frequencies | 802.11ax/ac/n/a: 5.725 to 5.850 GHz; 5.47 to 5.725 GHz; 5.15 to 5.35 GHz802.11ax/b/g/n: 2.4 to 2.483 GHz | |||
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54MbpsDSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps)
MIMO-OFDM (11n): MCS 0-31 MIMO-OFDM (11ac): MCS 0-9 MIMO-OFDM (11ax): MCS 0-11 |
|||
| Modulation mode | 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
|||
| Maximum transmit power | 2.4G: 25dBm, 5G: 30 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) | |||
| Adjustable power granularity | 1 dBm | |||
| Reset/restoration to factory default | Supported | |||
| State LED | Alternating flashing mode, orange/green/blue for different working states, breathing mode | |||
| Temperature | Operating temperature: -10°C to +55°C (32°F to 113°F)Storage temperature: –40°C to +70°C (–40°F to +158°F) | |||
| Humidity | Operating: 5% to 95% (non-condensing)Storage: 5% to 95% (non-condensing) | |||
| Protection class | IP42 | |||
| Overall power consumption | < 30 W (excluding IoT modules and USB) | |||
| Safety compliance | GB4943, EN60601-1-2 (medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 | |||
| EMC | GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 | |||
| Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC | |||
| Health | FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 | |||
| MTBF | > 250000 hours | |||
