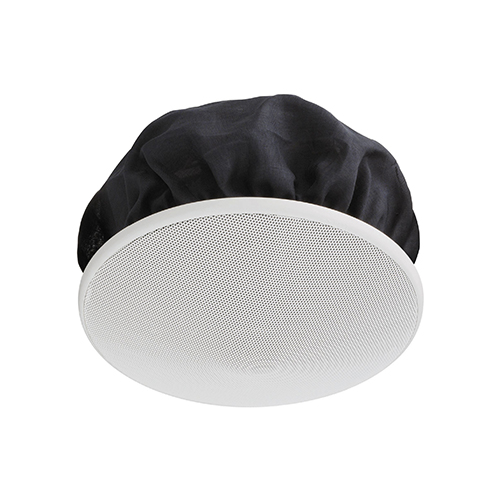

ลำโพงเพดาน  ยี่ห้อ TOA รุ่น F-2352SC

The F-2352SC ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.

• 2-way wide range speaker
• 154 mm mounting depth
• Easy installation
• Diffuser for wide dispersion of high frequencies
• Low power applications and medium ceiling height (2 to 4m)
• Without back for low profile ceilings with minimal depth

Specifications

• Frequency response  :  80 Hz – 20 kHz (-10 dB)
• Sensitivity (1 W, 1 m)  :  89 dB
• Speaker component  :  Low: 12 cm cone-type, High: Balanced dome-type
• Rated input (High Impedance)  :  6 W
• Tappings  :  6 / 3 / 1 / 0.5 W (100 V), 6 / 3 / 1.5 / 0.5 / 0.25 W (70 V), 8 Ω
• Mounting hole  :  200 mm
• Rated impedance  :  8 Ω
• Rated Input (Low Impedance)  :  Continuous pink noise: 9 W (8 Ω), Continuous program: 18 W (8 Ω)
• Finish  :  Steel plate, Fire-resistant ABS resin (resin material grade: UL-94 V-0), cream white (RAL 9001 or equivalent)
• Dimensions  :  230 x 154 mm (Ø x D)
• Weight  :  1.5 kg
• Accessory (included)  :  Panel x 1, Paper pattern x 1
