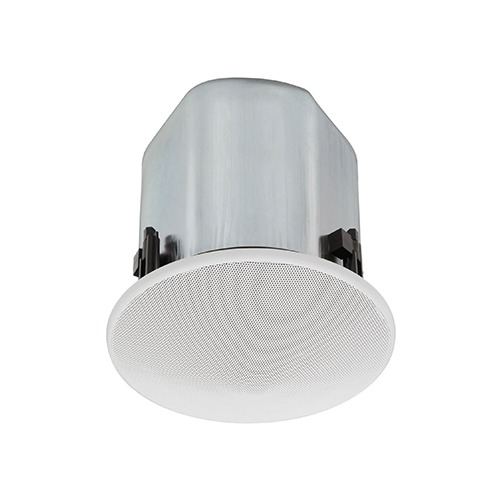

ลำโพงเพดาน  ยี่ห้อ TOA รุ่น FB-2862C AS

• Enclosure   :   Bass Reflex Type
• Rated Input     :  60W (High Impedance)
• Power Handling Capacity    :   Continuous: 60 W (8Ω) (IEC60268-5)   Program: 120 W (8Ω)
• Impedance    : 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)

70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)

25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W)

8Ω (120W)

• Sound Pressure Level   :  87 dB (1 W, 1 m) installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling or wall)

81 dB (1 W, 1 m) installation in free sound field (measured in anechoic chamber)

• Frequency Response    :  60 – 250 Hz (-10 dB) installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling or wall)
• Speaker Component   :   Low Frequency: 16 cm cone-type
• Mounting Hole  :  Φ 250 mm (Maximum ceiling thickness: 37mm)
• Input Terminal :  Removable locking connector with screw-down terminals (2 input terminals and 2 bridging terminals)
• Usable Cable   :   Solid copper wire: Φ0.5 – Φ1.6mm (equivalent to AWG No. 24 – 14)    Stranded copper wire: 0.2 – 2.5mm² (equivalent to AWG No. 24-14)
• Finish  :  Enclosure: Steel plate, plating    Baffle: Fire-resistant ABS resin (UL-94 V-0), black     Rim: Fire-resistant ABS resin (UL-94 V-0), white (RAL 9016)     Punched net: Steel plate, white (RAL 9016), paint
• Dimensions    :  Φ280 × 198 (D) mm
• Weight   :  6.3 kg (including mounting accessory)
• Accessory   :  Grille x 1, Ceiling Reinforcement x 1, Safety Wire x 1, Paper Pattern x 1
• Option    :  Anchoring Hanging Bracket: HY-AH1, Tile Bar Bridge: HY-TB1
