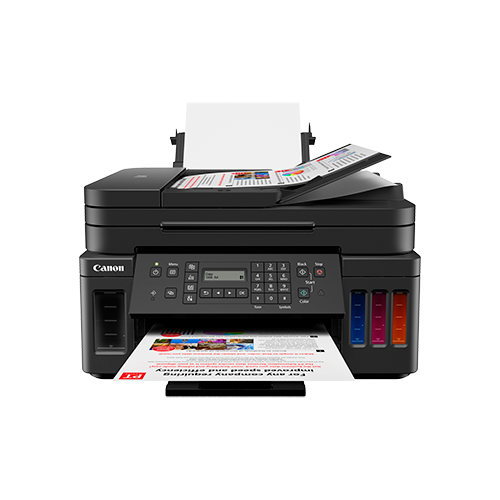

เครื่องพิมพ์ ยี่ห้อ Canon รุ่น G7070
- พิมพ์ สแกน ถ่ายสำเนาเอกสาร และแฟ็กซ์
- ความเร็วการพิมพ์มาตรฐาน ISO (ขนาด A4): พิมพ์ขาวดำได้ถึง 13.0 ภาพต่อนาที และพิมพ์ภาพสีได้ 6.8 ภาพต่อนาที
- รองรับการเชื่อมต่อ USB ความเร็วสูง 2.0, เชื่อมต่อแบบไร้สาย (WI-FI), เชื่อต่อแบบมีสาย (WIRED LAN), การพิมพ์ผ่านเทคโนโลยี PICTBRIDGE, การพิมพ์ผ่านมือถือ (MOPRIA), การพิมพ์จากอุปกรณ์ IOS (AIRPRINT), เชื่อมต่อตรงแบบไร้สาย (WI-FI DIRECT)
- ปริมาณการพิมพ์ที่แนะนำ: 150 – 1,500 หน้า
| Print Head / Ink | |
| Type | Permanent (Replaceable) |
| Number of Nozzles | Total 1,792 nozzles |
| Ink Cartridges | GI-70 (Pigment Black / Cyan / Magenta / Yellow) |
| Maximum Printing Resolution | 4800 (horizontal)*1 x 1200 (vertical) dpi |
| Print Speed*2
Based on ISO/IEC 24734 |
|
| Document (ESAT/Simplex) | Approx. 13.0 ipm (black) / 6.8 ipm (colour) |
| Document (FPOT Ready / Simplex) | Approx. 9 sec (black) / 14 sec (colour) |
| Photo (4 x 6″) (PP-201/Borderless) | Approx. 45 sec |
| Printable Width | Up to 203.2 mm (8″), Borderless: Up to 216 mm (8.5″) |
| Printable Area | |
| Borderless Printing*3 | Top/Bottom/Right/Left margin: Each 0 mm |
| Bordered Printing | #10 Envelope/DL Envelope: Top 8 mm / Bottom 12.7 mm / Right 5.6 mm / Left 5.6 mm 127 x 127 mm: 89 x 89mm / 4 x 4″: LTR / LGL: Other: |
| Bordered Auto 2-Sided Printing | Top / Bottom margin: 5 mm Left / Right margin: 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm) |
| Support Media | |
| Rear Tray | Plain Paper (64 – 105 g/m²) Photo Paper Pro Platinum (PT-101) Photo Paper Pro Luster (LU-101) Photo Paper Plus Glossy II (PP-201/PP-208) Matte Photo Paper (MP-101) Glossy Photo Paper “Everyday Use” (GP-508) High Resolution Paper (HR-101N) Photo Paper Plus Semi-Gloss (SG-201) Photo Stickers (PS-108/PS-208/PS-808) Removable Photo Stickers (PS-308R) Magnetic Photo Paper (PS-508) Envelope |
| Cassette | Plain Paper (64 – 105 g/m²) |
| Paper Size | |
| Rear Tray | A4, A5, B5, LTR, LGL, 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″ Envelopes (DL, COM10), Square (5 x 5″, 4 x 4″, 89 x 89 mm), Card Size (91 x 55 mm) [Custom size] |
| Cassette | A4, A5, B5, LTR
[Custom size] |
| Paper Size (Borderless)*4 | A4, LTR, 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″ Square (5 x 5″,4 x 4″,89 x 89 mm), Card Size (91 x 55 mm) |
| Paper Handling (Maximum Number) | |
| Rear Tray | Plain Paper (A4, 64 g/m²) = 100 High Resolution Paper (HR-101N) = 80 Photo Paper: 4 x 6″ = 20, 5 x 7″ = 10 |
| Cassette | Plain Paper (A4, 64 g/m²) = 250 |
| Support Media for Auto 2-sided printing | |
| Type | Plain Paper |
| Size | A4, A5, B5, LTR |
| Paper Weight | |
| Rear Tray | Plain Paper: 64 – 105 g/m² Canon paper: Max paper weight: Approx. 300 g/m² (Photo Paper Pro Platinum PT-101) |
| Cassette | Plain Paper: 64 – 105 g/m² |
| Ink End Sensor | Electrode type and dot count type combined |
| Print Head Alignment | Auto/Manual |
Scan*5
| Scanner Type | Flatbed |
| Scanner Method | CIS (Contact Image Sensor) |
| Optical Resolution*6
Optical resolution scan is available, only when you use TWAIN Driver. |
1200 x 2400 dpi |
| Scanning Bit Depth (Input/Output) | |
| Grayscale | 16 bit/8 bit |
| Colour | RGB each 16 bit/8 bit |
| Line Scanning Speed*7 | |
| Grayscale | 1.5 ms/line (300 dpi) |
| Colour | 3.5 ms/line (300 dpi) |
| Maximum Document Size | |
| Flatbed | A4/LTR (216 x 297 mm) |
| ADF |
Copy
| Maximum Document Size | |
| Flatbed | A4/LTR (216 x 297mm) |
| Compatible Media | |
| Size | A4/A5/B5/LTR/LGL/4 x 6″/5 x 7″/ Square (5 x 5″)/Card Size (91 x 55 mm) |
| Type | Plain Paper Photo Paper Pro Platinum (PT-101) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-201) Glossy Photo Paper “Everyday Use” (GP-508) Matte Photo Paper (MP-101) Photo Paper Plus Glossy II (PP-201) Photo Paper Plus Glossy II (PP-208) |
| Image Quality | 3 positions (Economy, Standard, High) |
| Density Adjustment | 9 positions, Auto intensity (AE copy) |
| Copy Speed*8
Based on ISO/IEC 24734 |
|
| Document (Colour) (sFCOT/Simplex) / (sESAT/Simplex) | Approx. 22 sec / approx. 3.9 ipm |
| Multiple Copy | |
| Black/Colour: | Max. 99 pages |
Fax
| Type | Desktop Transceiver (Super G3 / Colour Communication) |
| Applicable Line | PSTN |
| Transmission Speed*9 | Approx. 3 sec (black) / approx. 1 min (colour) |
| Fax Resolution | |
| Black | 8 pels/mm x 3.85 lines/mm (Standard) 8 pels/mm x 7.7 lines/mm (Fine) 300 dpi x 300 dpi (Extra Fine) |
| Colour | 200 × 200 dpi |
| Print Size | A4, LTR, LGL |
| Scanning Width | 208 mm (A4), 214 mm (LTR) |
| Modem Speed | Maximum 33.6 kbps (Automatic fall back) |
| Compression | |
| Black | MH, MR, MMR |
| Colour | JPEG |
| Gradation | |
| Black | 256 levels |
| Colour | 24 bit Full colour (RGB each 8 bit) |
| ECM (Error Correction Mode) | ITU-T T.30 compatible |
| Automatic Dialling | |
| Group Dialling | Max. 19 locations |
| Transmission/Reception Memory*10 | Approx. 50 pages |
PC Fax
| Type | Windows / Mac |
| Destination Number | 1 location |
| Black/Colour | B/W transmission only |
Network
| Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
| Wired LAN | |
| Network Type | IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Data Rate | 10M/100Mbps (auto switchable) |
| Wireless LAN | |
| Network Type | IEEE802.11n / IEEE802.11g / IEEE802.11b |
| Frequency Band | 2.4 GHz |
| Channel*11 | 1 – 13 |
| Range | Indoor 50 m (depends on the transmission speed and conditions) |
| Security | WEP64/128 bit WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
| Direct Connection (Wireless LAN) | Available |
Printing Solutions
| AirPrint | Available |
| Windows 10 Mobile | Available |
| Mopria | Available |
| Google Cloud Print | Available |
| Canon Print Service (for Android) |
Available |
| PIXMA Cloud Link (from smartphone/tablet) |
Available |
| Message in Print (for iOS/for Android) |
Available |
| Easy Photo-Print Editor (for iOS/for Android) |
Available |
| Canon PRINT Inkjet/SELPHY (for iOS/for Android) |
Available |
System Requirements*12
| Windows 10 / 8.1 / 7 SP1 (operation can only be guaranteed on a PC with a pre-installed Windows 7 or later) OS X 10.11.6 |
General Specifications
| Operation Panel | |
| Display | 2-Line LCD |
| Language | 32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese |
| Interface | Hi-Speed USB 2.0 |
| PictBridge (Wireless LAN / LAN) | Available |
| Operating Environment*13 | |
| Temperature | 5 – 35°C |
| Humidity | 10 – 90% RH (no dew condensation) |
| Recommended Environment*14 | |
| Temperature | 15 – 30°C |
| Humidity | 10 – 80% RH (no dew condensation) |
| Storage Environment | |
| Temperature | 0 – 40°C |
| Humidity | 5 – 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) | |
| Plain Paper (A4, B/W)*15 | Approx. 47.0 dB(A) |
| Power | AC 100-240 V, 50/60 Hz |
| Power Consumption | |
| OFF | Approx. 0.3 W |
| Standby (scanning lamp is off) USB connection to PC |
Approx. 1.0 W |
| Standby (all ports connected, scanning lamp is off) [EU only – for ErP Lot 26 regulation] |
Approx. 1.8 W |
| Time to enter Standby mode [EU only – for ErP Lot 26 regulation] | Approx. 11 min 10 sec. |
| Copy*16 USB connection to PC |
Approx. 15 W |
| Environment | |
| Regulation | RoHS (EU, China), WEEE (EU) |
| Duty Cycle | Up to 5,000 pages/month |
| Dimension (WxDxH) | |
| Factory Configuration | Approx. 403 x 369 x 234 mm |
| Output/ADF trays extended | Approx. 403 x 701 x 305 mm |
| Weight | Approx. 9.6 kg |
Page Yield
| Plain Paper (A4 pages) (ISO/IEC 24712 test file)*17 |
Standard*18: GI-70 PGBK: 6,000 GI-70 C/M/Y: 7,700 Economy*19: |
| Photo Paper PP-201, 4 x 6″ (ISO/IEC 29103 test file)*17 |
Standard: GI-70 PGBK: NA GI-70 C/M/Y: 2,200 |
