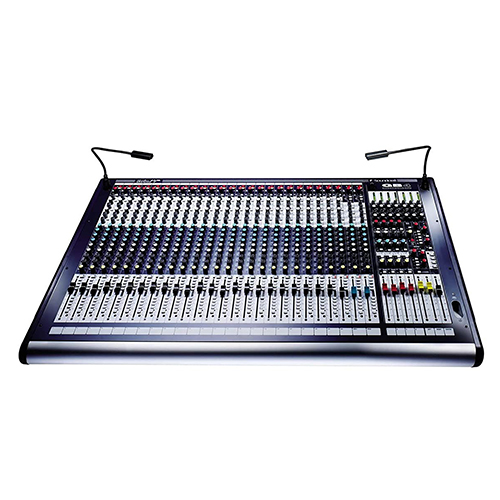

Console Mixer ยี่ห้อ SOUNDCRAFT รุ่น GB4 24

The Soundcraft GB4 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB4 is available in 12, 16, 24, 32 and 40 channel frames to suite specific needs in live sound mixing.

This model is configured with 24 input channels. 24 inputs feature microphone and line level connections, an additional 4 stereo inputs are provided as well. The stereo inputs (ST1 – ST4) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc. The console features 4 group outputs enabling routing to monitors, external recorders, etc. The GB4 series implements Soundcraft’s GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles.

Additional features include Soundcraft’s famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.

Features:

• 24-channel frame size
• GB30 mic preamps
• Precision equalization circuitry
• Direct outputs on every channel
• Talkback facility
• 100mm faders
• Switchable 48V phantom powering on every channel
• 18dB/octave high-pass filter
• 4 mute groups
• 12-segment LED metering
• Record output with limiter
• 2 full-feature stereo channels
• 2 stereo returns
• 8 aux sends (4 are pre/post switchable)
• 4 sub groups (SWAP with Auxes 1-4)

Specifications
