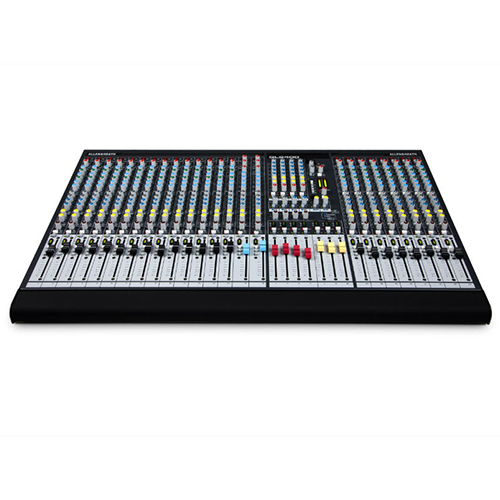

มิกเซอร์ ยี่ห้อ Allen & Heath รุ่น GL2400-24

Whether you’re mixing FOH, monitors, or both, recording live or in the studio, installed in a busy conference center or house of worship, out on the road touring or earning its keep in rental stock, the new Allen & Heath GL2400 provides the perfect solution. This 4-bus, 6-aux console adds a host of new features including a 7 x 4 matrix with innovative mic crosspatching to create ambient enhanced additional mixes such as mono or stereo IEM and recording feeds.

The GL2400 Series includes other thoughtful new touches such as the pluggable option jumpers, XLR lamp sockets and optional Sys-Link V2 expandability. Performance is top-flight with the latest extended headroom preamp design, responsive 4-band EQ, and a new ultra-quiet mix head amp. The stylish new design uses individual nutted pot cards in a rugged, all-steel small footprint chassis, ideal for flightcasing or the space-limited venue.

• L/R and M main outputs
• Four audio groups with pan control
• Six auxiliary sends with per-channel pre/post fader switching
• Two stereo channels each with mic and dual stereo line inputs
• 7×4 matrix
• Proper dual functionality for FOH and/or monitor mixing
• M can be configured as L/R sum, wedge, or aux-fed sub or C master
• Recording capable with channel direct outputs
• Matrix external inputs with level trims and common input capability
• Stereo channel line inputs can be independently routed to L/R
• Stereo channel mic input breakpoints for cross patching into matrix
• Responsive 4-band, 2-sweep EQ
• 100Hz channel highpass filters
• Individual phantom power and polarity switching
• Dedicated Channel, Master and stereo Monitor meters
• Internal jumper plugs for pre/post-EQ aux, direct out and other options
• Mutes, meters and AFL on all fader masters
• Assignable talkback
• 1kHz oscillator and pink noise generator
• 2-track monitoring and replay to L/R
• Headphones and local monitor outputs
• Electronically balanced XLR outputs with +26dBu drive capability
• Preamp +34dBu maximum input capability for mic or line
• Ultra low-noise mix head amp design
• Internal power supply with MPS12 backup supply input (16 to 32 models)
• 100mm dust protected faders
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Solid copper bus bar grounding
• Optional Sys-Link V2 console linking
• 4-pin XLR lamp sockets
