Rack Mount 5 In 4 Out Zone Mixer with Euroblock Connectors ยี่ห้อ Allen & Heath รุ่น GR05ST/X

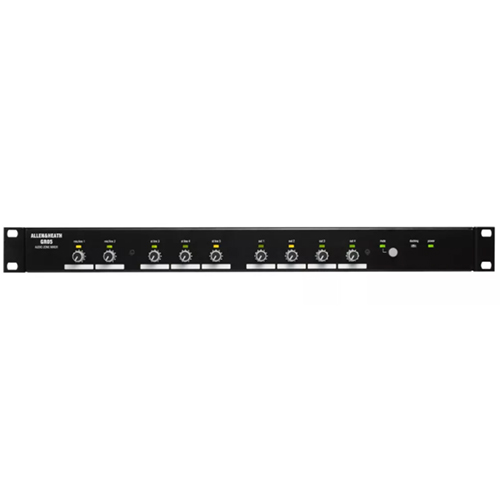

The GR05-ST is a rack-mountable audio zone mixer designed for installed applications from Allen & Heath.GR05-ST is a compact, five-input, four-output, installation mixer, with a simple front panel and a wide range of installer-configurable options. Each input and output has a level control and three-colour LED status indicator on the front panel. For complete ‘fit and forget’ installations, the level knobs may be removed and blanking plugs fitted so just the status lights and a mute button remain. All inputs can be routed to any combination of outputs direct or via the VCA control. The unit may be used free-standing, or mounted in 1U of rack space. Now, the Allen & HeathGR05-ST offers at a lower selling prices at the vincent maestro online shop. Allen & HeathGR05-ST with all the best profit for that features now can be purchase with a typical buy cheap wholesale prices by vincent maestro. The Allen & HeathGR05-ST features two XLR microphone inputs and three stereo RCA line inputs as well as four XLR male outputs. Each of the inputs can be routed to any combination of outputs directly or via VCA control.

Internal or external ducking is also available, including muting. Both ducking depth and release time are assignable. If desired, a second Allen & HeathGR05-ST can be connected and slaved, doubling the amount of I/Os. Level controls for all I/Os can be set for knob or screwdriver control, or the provided hole plugs may be fitted to lock out control. Two balanced microphone/line input channels have XLR connectors and gain controls on the rear panel and internal presets and jumpers to set 15V phantom power, mic/line level, swept EQ, high-pass filter, ducking, and routing. Three stereo RCA (phono) line-level inputs have internal jumpers for level matching, routing and ducking presets. Each output has an XLR connector, separate internal ducking control, two-band EQ and level presets. A female D-sub 25-pin ‘Expander/remote’ connector allows multiple units to be linked for larger systems, a remote VCA and ducking control, and external DC power supply for maintained systems. The sophisticated and modern features offered by Allen & Heath to GR05-ST audio zone mixer make it so worthy to the high selling price. But on this occasion, vincent maestro online shop offers cheap wholesale price and the best benefits of the online purchasing procedures.

Features:

• 2 mic inputs
• 3 stereo inputs
• 4 XLR outputs
• Routing Matrix
• Remote Control
• Expandable
• Lock out system
• Internal power supply
• 1U rack space zone mixer
• Remote control is available via a 25-pin D connector
• Ducking, including muting, is available with assignable depth and release time
• A second unit can be “slaved” to increase the number of I/Os
• Level controls can be set for knob or screwdriver adjustment, or can be locked out using the included hold plugs
• DC input for backup power
• LED status indicators for power, signal, ducking, and mute

Specifications:

• Maximum Output Level: +20 dBu into 2 k ohms
• Frequency Response: 20Hz – 30kHz
• Distortion: < 0.005%
• Crosstalk: Channel Shutoff: < -90dB / Interchannel: < -80dB / Channel Pan: < -75dB
• Noise: Mic EIN: -128dB / Line Preamp @ 0dB Gain: -91 dBu / Mix Noise (All Routed): < -86dB
• Headroom: +20dB
• Ducking: Depth: -10dB, -20dB or Mute Links
• Inputs: 2 x XLR / 3 x RCA Stereo Pairs / 1 x 25-Pin D Connector with Pins for Expander In, Ducking Trigger, Remote VCA, and Backup DC / 1 x AC Power In
• Outputs: 4 x XLR / 1 x 25-Pin D Connector with Pins for Expander Out and Remote VCA (Same Connector as 25-Pin Input)
• Indicators: 3-Color LED Meters for Each I/O: Green: Signal Present / Yellow: Nominal 0dB Signal / Red: Peak 5dB Before Clipping / Tri-Color Ducking Status Indicator / Mute Switch Indicator / Power Status Indicator
• Controls Front Panel: 1 x Power Switch / 9 x Level Controls / 1 x Output Mute Switch
• Controls Rear Panel: 2 x Mic Gain Controls
• Power: 100 to 230VAC @ 47-63Hz
• Power Consumption: 18VA Max
• Dimensions (WxHxD): 19 x 1.7 x 10.2″ (483 x 44 x 260 mm)
• Weight: 9 lbs (4 kg)
