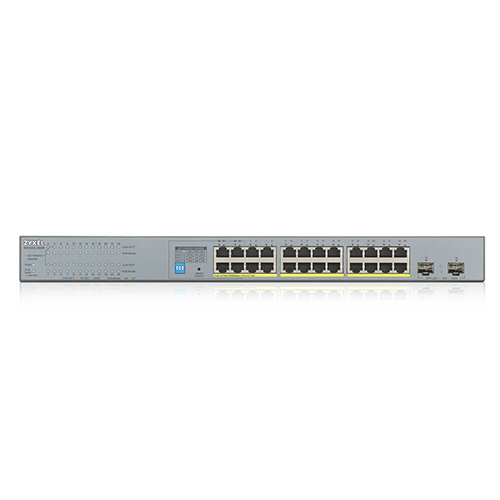

GS1300-26HP

The GS1300 series overcomes the 100 meter limitation of Ethernet, and fulfills the need to deploy IP camera or powered devices using existing Cat 5e cable to distant locations. By toggling the DIP switch to turn on the extended-range mode, instantly achieve distant deployments up to 250 meters. Save your money and effort with simply one PoE Switch.
The GS1300 series includes 3 models with a range of large power budgets from 130 W to 250 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status.

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

24-port GbE Unmanaged PoE Switch with GbE Uplink ยี่ห้อ ZYXEL รุ่น GS1300-26HP

Standard Compliance

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.3z 1000Base-X
IEEE 802.3x flow control
IEEE 802.3af PoE
IEEE 802.3at PoE plus
IEEE 802.3az EEE
IEEE 802.1p Class of Service (CoS) prioritization

Certifications

EMC:
- CE, FCC, C-Tick, Class A
- BSMI CNS13438
Safety:
- LVD EN62368-1
- BSMI CNS14336-1
RoHS compliant

Installation Features

Supports lightning surge protection:
- Ethernet port: 2 KV
- Power input: 4 KV
Supports ESD protection (Air/Contact): 8 KV/4 KV
Extended range of up to 250 meters*
- Fixed link speed at 10Mbps
- Limited to 802.3af PDs and cameras

Models	GS1300-10HP	GS1300-18HP	GS1300-26HP
Model
Product name	8-port GbE Unmanaged PoE Switch with GbE Uplink	16-port GbE Unmanaged PoE Switch with GbE Uplink	24-port GbE Unmanaged PoE Switch with GbE Uplink
Switch class	Unmanaged	Unmanaged	Unmanaged
Port Density
Total port count	10	18	26
100/1000 Mbps	9	17	24
Gigabit SFP	1	1	2
Configurable extended range ports	2	4	4
PoE
PoE ports	8	16	24
Total PoE budget (watt)	130	170	250
PoE 802.3at	Yes	Yes	Yes
Performance
Switching capacity (Gbps)	20	36	52
Forwarding rate (Mpps)	14.8	26.7	38.7
Packet buffer (byte)	525 K	525 K	525 K
MAC address table	8 K	8 K	8 K
Power
Input	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz
Max. power consumption (watt)	155.8	205.7	301.9
Physical Specifications
Dimensions (WxDxH)(mm/in.)	267 x 162 x 44 / 10.51 x 6.38 x 1.73	330 x 230 x 44 / 12.99 x 9.06 x 1.73	441 x 270 x 44 / 17.36 x 10.63 x 1.73
Weight (kg/lb.)	1.65/3.64	2.31/5.09	3.57/7.87
Included accessories	Power cord Wall-mount kit Rack mounting kit	Power cord Rack mounting kit	Power cord Rack mounting kit
Environmental Specifications
Operating	Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing)	Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing)	Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing)
Storage	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)
MTBF (hr)	394,567	378,972	347,760
Heat dissipation (BTU/hr)	531.278	701.437	1,029.479
Acoustic noise @ 25°C (dBA)	44	48	48
