GS1350-6HP

Crafted for CCTV, Zyxel introduces the titanium grey GS1350 smart managed switch for your surveillance network
The GS1350 Series offers a smart, intuitive web UI experience, specifically for your surveillance applications. Monitor your cameras and PoE status at a glance and setup your surveillance network with absolute ease.
The GS1350 Series joins the Zyxel NebulaFlex Pro family, which allows you to easily switch between standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled with just a few simple clicks. Both management options have dedicated surveillance features to help you manage your surveillance network with ease.

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

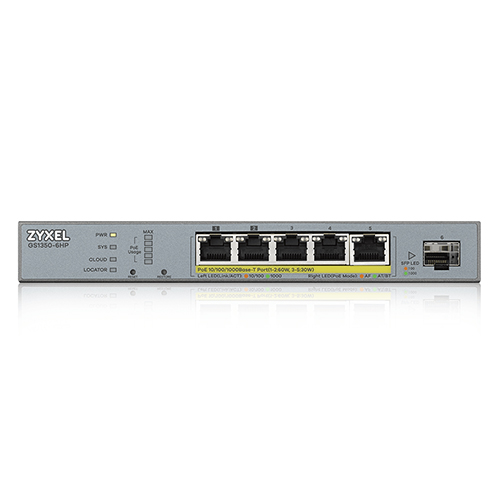

5-port GbE Smart Managed PoE Switch with GbE Uplink ยี่ห้อ ZYXEL รุ่น GS1350-6HP

Standard Compliance

IEEE 802.3 10Base-T Ethernet*
IEEE 802.3u 100Base-Tx Ethernet*
IEEE 802.3ab 1000Base-T Ethernet*
IEEE 802.3z 1000Base-X*
IEEE 802.3x flow control
IEEE 802.3af PoE*
IEEE 802.3at PoE+*
IEEE 802.3bt PoE++ (Port 1 and 2 for GS1350-6HP)*
IEEE 802.3az EEE support/Green Ethernet
IEEE 802.1p CoS support*

Resilience and Availability

IEEE 802.1D Spanning Tree Protocol (STP)*
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
IEEE 802.3ad LACP (Max # Trunks/Links per Trunk)* :
- GS1350-6HP: 3/6
- GS1350-12HP: 6/8
- GS1350-18HP: 8/8
- GS1350-26HP: 8/8
Loop guard*
Dual configuration files
Dual images*

Traffic Control

802.1Q Static VLANs: 256*
Port-based VLAN
Voice VLAN*
MAC-based VLAN
Vendor ID based VLAN*
VLAN Trunking*
LACP algorithm of source/destination IP

Security

Layer 2 MAC filtering
Static MAC forwarding
SSH v2
SSL
Port isolation*
Port security
MAC freeze
CPU protection
SHA2 HTTPS Certification
Login authentication by RADIUS
RADIUS accounting
Authorization on RADIUS
Multiple RADIUS servers
DHCP Snooping

Quality of Service (QoS)

802.1p queuing methods: SPQ, WRR, WFQ
Storm control: broadcast, multicast, unknown unicast (DLF)*
Port-based rate limiting (ingress/egress)*
802.3x flow control
802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
DiffServ (DSCP)

Layer 2 Multicast

L2 Multicast*
Static L2 Multicast Forwarding
IGMP snooping (v1,v2,v3)*

Models	GS1350-6HP	GS1350-12HP	GS1350-18HP	GS1350-26HP
Model
Product name	5-port GbE Smart Managed PoE Switch with GbE Uplink	8-port GbE Smart Managed PoE Switch with GbE Uplink	16-port GbE Smart Managed PoE Switch with GbE Uplink	24-port GbE Smart Managed PoE Switch with GbE Uplink
Switch class	Smart Managed	Smart Managed	Smart Managed	Smart Managed
Port Density
Total port count	6	12	18	26
100/1000 Mbps	5	10	16	24
Gigabit SFP	1	2	–	–
Gigabit combo (RJ-45/SFP)	–	–	2	2
Configurable extended range ports	5	8	16	24
PoE
PoE ports	5	8	16	24
Total PoE budget (watt)	60	130	250	375
PoE Standard	802.3af/at 802.3bt (port 1-2)	802.3af/at	802.3af/at	802.3af/at
Performance
Power
Input	52 V – 57 V DC	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz
Max. power consumption (watt)	72	160.3	300.9	448.9
Physical Specifications
Dimensions (WxDxH)(mm/in.)	193 x 84 x 26 / 7.6 x 3.31 x1.02	267 x 162 x 44 / 10.51x 6.38 x1.73	330 x 230 x 44 / 12.99 x 9.06 x1.73	441 x 270 x 44 / 17.36 x10.63 x 1.73
Weight (kg/lb.)	0.41/0.9	1.63/3.59	2.42/5.34	3.58/7.89
Included accessories	Power adapter Wall-mount kit	Power cord Rack mounting kit	Power cord Rack mounting kit	Power cord Rack mounting kit
ESD/Surge Protections
Ethernet port surge protection	4 KV	4 KV	4 KV	4 KV
Power supply surge protection: Line-GND	4 KV	4 KV	4 KV	4 KV
Power supply surge protection: Line-Line	2 KV	2 KV	2 KV	2 KV
Ethernet port ESD protection (air/contact)	15 KV/8 KV	15 KV/8 KV	15 KV/8 KV	15 KV/8 KV
Environmental Specifications
Operating	Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing)	Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing)	Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing)	Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing)
Storage	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)
MTBF (hr)	2,021,885.87	1,065,025.45	1,699,692.18	888,495
Heat dissipation (BTU/hr)	245.52	546.62	1,026.07	1,530.75
Acoustic noise @ 25°C (dBA)	0 (Fanless)	27.3	39	40.1
