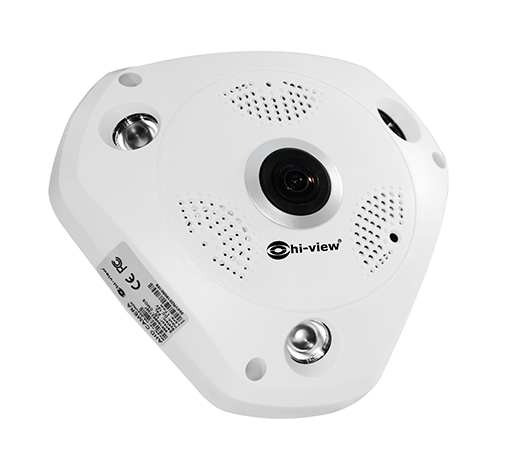

กล้องวงจรปิด AHD TVI CVI ยี่ห้อ Hi – View รุ่น HA-304VR20
- FULL HD Video Output
- 4in1 AHD TVI CVI Analog
- 3pcs Array LED
- CDS Auto Control in Low Lux
- ESD surge protection
- Day & Night
- Lens 1.7mm.Fisheye lens/F2.0
- OSD and UTC Menu
SPECIFICATION
| Model | HA-304VR20 |
| Image Sensor | 1/2.9″ CMOS image sensor Progressive Scan |
| Resolution | 1080P (4-in-1, AHD/TVI/CVI/CVBS) |
| Total Pixels | PAL:1920x1080P |
| Scanning Frequency | PAL: 15.625Khz (H), 50Hz (V) |
| Scanning System | 2:1 interlace |
| S/N Ratio | More than 52dB. (AGC off) |
| Min. Illumination | 0.01 lux |
| Sync. System | Synchronization |
| Electric Shutter | Auto: PAL 1/50-1/100,000Sec |
| Gamma | Y = 0.45 |
| Video Output | 1.0 Vp-p Composite (7502) |
| Video Format | PAL/NTSC |
| AGC | Auto |
| D-WDR | Support |
| SENS-UP | Support |
| DEFOG | Support |
| Backlight Control | BLC, |
| ATW | Support |
| NR | Support 2D-DNR |
| Cam Title | Support |
| D-Effect | Support |
| Motion | Support |
| LSC | Support |
| Image adjust | Sharpness, Color |
| Day Night | Support IR CUT |
| Lens | 3MP. 1.7mm. Fisheye lens /F2.0 |
| IR LED | 3 Pcs. (Array IR LED 30 Meter) |
| IR Distance | 30 Meters when IR on |
| IR LED Operating | On (1 lux) / Off (3 lux) |
| Led life | More than 10,000 hours |
| Power Requirement | DC12V (+-10%) |
| Power Consumption | IR on: 560 mA,, IR off 70 mA. |
| Cable | BNC |
| Surge Protection | ESD surge protection up to 5000Volt power supply |
| OSD menu | Support COC OSD cable with auto close function |
| Operation Temp | -10°C~+50°C RH95 MAX |
| Storage Temp | -20°C~+60°C RH95 MAX |
| Dimension | 154x154x44mm |
| Weight | 0.3Kg. |
