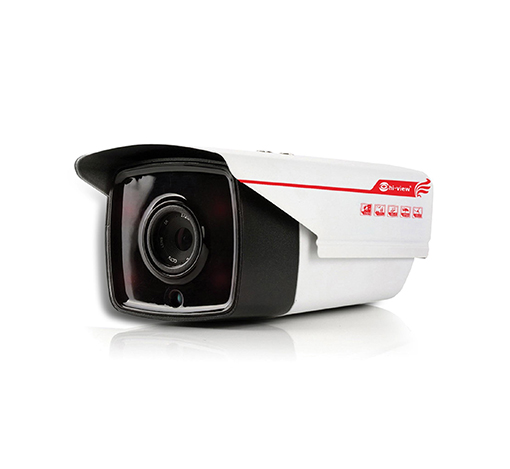

กล้องวงจรปิด AHD Bullet ยี่ห้อ Hi – View รุ่น HAT-594B50
- 1/2.5″ K03
- 4-in-1(AHD/TVI/CVI/CVBS)
- Pixels 5MP,4MP,1080P
- Lens 3.6mm./F2.0
- IR array 4 pcs, IR Distance 30-50M.
- Day&Night IRCUT, ATW, BLC, FLC, DWDR, 2DNR
- OSD cable, UTC, IP66
| Model | HA-594B50 |
| Image Sersor | 1/2.5″ K03 |
| DSP | Fulhan FH8538M |
| Pixels | 5MP,4MP,1080P |
| Video Sytem Output | 4-in-1(AHD/TVI/CVI/CVBS) |
| Video Output Mode | AHD: 5MP@12.5, 5MP@20, 4MP@25, 4MP@30, 4MP@15, 1080P@25, 1080P@30 TVI: 5MP@12.5, 5MP@20, 4MP@25, 4MP@30, 4MP@15, 1080P@25, 1080P@30 CVI: 4MP@25, 4MP@30, 4MP@15, 1080P@25, 1080P@30 CVBS” |
| Min. lllumination | 0.1lux full color |
| Shutter Speed | 1/25s-1/100,000s |
| Automatic Gain Control | Support AGC |
| Day&Night | EXT, AUTO, COLOR, B/W |
| Digital Wide Dynamic Range | Support DWDR |
| Exposure Mode | Groble, center, BLC, FLC |
| White Balance | Support ATW, MWB, Gray World |
| Digital Noise Reduction | Support 2DNR |
| Imgae Adjustment | Support brightness, contrast, sharpness, saturation, mirror (H,V,HV,) |
| S/N Ratio | >58dB. |
| Signal System | PAL/NTSC |
| Lens | |
| Mount Type | M12 |
| Auto Iris | Auto Electric Iris |
| Focal Lenght | 3.6mm./F2.0 |
| Focus Mode | Manual |
| Angle of View | 85 ํ |
| Infrared | |
| IR LED | IR array 4 Pcs. |
| IR Distance | 30-50M |
| IR Intensive | Support IR Smart |
| IR CUT | Support DAY&NIGHT |
| User Interface | |
| OSD Menu | Support (OSD Cable, Auto close OSD menu) |
| OSD Language | Support |
| Control Over Coax (COC) | Support COC/UTC |
| Electrical | |
| power | DC Jack 12V.+-10% |
| power Consumption | IR off 1-1.2W. IR on 8-11W. |
| Environmental | |
| Operating Temperature | -30 ํC-+60 ํC |
| Storage Temperature | -30 ํC-+50 ํC |
| Working Humidity | |
| Lighting Protection | Power(600W)/Video(2KV) |
| Ingress Protection | IP66 |
| Hardware Interface | |
| Video Output | BNC x1 (Femail 1.0Vp-p at 75) |
| Power Input | DC Jack x1 (DC12V) |
| Machanical | |
| Case Material | Aluminum Build-in Bracket |
| Weight | 603g |
| Dimension | 188x75x102mm |
