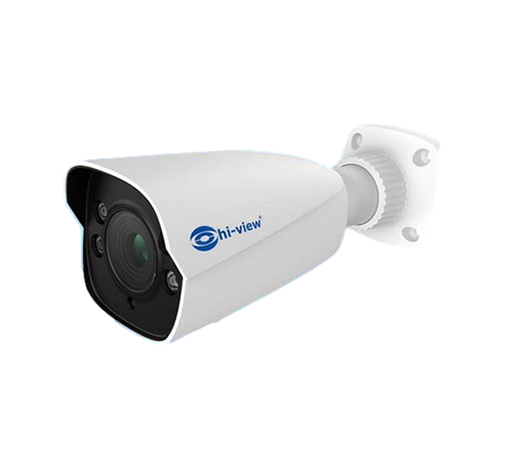

กล้องวงจรปิด IP Bullet ยี่ห้อ HI- VIEW รุ่น HP-97B502PE
- ขนาดเซนเซอร์ 1/2.7″ progressive scan CMOS sensor
- ความละเอียด 5.0MP 2592(H)x1944(V)
- Shutter Speed 1/25s ~ 1/100,000s
- Focal Length 2.8mm.@F1.85 / Focus Mode Manual
- Horizontal Field of Angle 93.4ํ
- Mount Type M12 / Iris Fixed iris
- LED IR Array 2 Pcs / IR Distance 30-50M.
- IR Smart Supported / H.265, H.264, MJPEG
- RJ45 x1 with POE (Waterproof)
- Ingress Protection IP67
- Surge Protection 6KV
- Power 12V DC. / PoE (IEEE802.3af)
Specification
| Model | HP-97B502PE |
| Image | 1/2.7″ SC5236 progressive scan CMOS sensor |
| CPU | NT98515 |
| Pixels | 5.0MP |
| Min. lllumination | Color 0.0236lux@F2.0, AGC ON; 0 lyx with IR |
| B/W 0.0085 Lux@F1.2, AGC ON; 0 lux with IR | |
| Shutter Speed | 1/25s ~ 1/100,000s |
| Exposure Mode | Auto, Manual (1,1/2,1/5,1/10,1/15,1/25,1/50,1/60, |
| 1/100,1/250,1/500,1/1000,1/2000,1/10000,1/100000) | |
| Gain Control | Auto / Manual |
| Lens | |
| Focal Length | 2.8mm.@F1.85 |
| Focus Mode | Manual |
| Horizontal Field of Angle | 93.4 ํ |
| Mount Type | M12 |
| Iris | Fixed iris |
| Digital Zoom | Supported |
| Infrared | |
| LED IR | Array 2 Pcs |
| IR Distance | 30-50M. |
| IR Smart | Supported |
| Infrared Mode | Auto, On, Off |
| Day / Night | ICR (Auto) |
| Day / Night mode | Auto, Day, Night Schedule |
| Day / Night Sensitivity | Low, Middle, High |
| Video/Audio | |
| Video Compression | H.265, H.264, MJPEG |
| Compression Standard | Main profile@Level 4.1 High tier |
| Compression Standard | Five levels under VBR; Freely |
| adjustable under CBR | |
| Bitrate Control | VBR / CBR |
| Stream | Triple-Stream |
| Image Resolution | Main stream: 2592×1944, 2560×1440, |
| 1920×1080, 1280×720 | |
| Sub stream: 1280×720, 704×576, 352×288 | |
| Third stream : 704×576, 480×240, 352×288 | |
| Frame Rate | Main stream: 2592×1944@20fps, |
| 2560×1440@25fps,1920×1080@25fps, | |
| 1280×720@25fps | |
| Sub stream: 1280×720@12fps, 704×576@25fps, | |
| 352×288@25fps | |
| Third stream: 704×576@25fps, 480×240@25fps, 352×288@fps | |
| 352×288@25fps | |
| Bitrate | 64kbps ~ 5120 Kbps |
| Video Encode Slice Split | Supported |
| Watermask | Supported |
| Caption image and video | Supported |
| ROI | Supported Max. 3 Area. Level adjustable |
| Display Mode | Supported schedule mode (common, day, night) |
| Image color adjustment | Brightness, Contrast Hue, Saturation, sharpness |
| Backlight Compensation | BLC / HLC / DWDR |
| Digital NR | 2D/3D DNR |
| Defog | Supported |
| Anti Flicker | Supported |
| White Balance (ATW) | Support (Auto, Manual, Indoor, Outdoor) |
| Frequency | 50Hz/60Hz. |
| Model | HP-97B502PE |
| Gain limit | Supported |
| Image mirror | Supported |
| Image Filp | Supported |
| E-zoom | Supported |
| Video Mask | Up to 4 zones |
| Camera OSD Setting | Supported |
| Network | |
| Network Protocols | TCP/IPv4, TCP/IPv6, PPPoE, HTTP, HTTPS, RTSP, |
| DDNS, DNS, SNMP, SMTP, UPnP, FTP DST, NTP, | |
| ONVIF, 8021X, FTP, QoS | |
| DDNS | autoddns, 88ip, dns2p, meibu, dyndns, no-ip, |
| dvrdydns, mintdns, 123ddns | |
| User Interface | IE browsing, CMS remote control |
| (NVMS1000, NVMS2.0), APP (superlive plus) | |
| Account Management | Supported |
| Network Upgrade | Supported |
| Onvif | Supported |
| Block and Allow List | Supported (IP filtering IPv4/IPv6,MAC) |
| Mac Filter | Supported |
| Backup Import Export Config | Supported |
| LOG | Supported |
| Alarm | |
| Motion Alarm | Supported (Triger email, FTP) |
| Exception | Scene change, vdeo blur detection, |
| video cast detection (Triger email, FTP) | |
| Smart Intelligent Alarm | Object removal, Object left detection, |
| line crossing, intrusion | |
| Others Alarm | IP change notification, Online user |
| Alarm Schedule | Supported |
| Alarm Triggers | Email, FTP |
| Interfaces | |
| Ethernet | RJ45 x1 with POE (Waterproof) |
| Power input | Jack x1 (DC12V/POE) |
| Environmental | |
| Operating Temperature | -30 ํC~+60 ํC |
| Operating Humidity | 95% humidity or less (non-condensgin) |
| Ingress Protection | IP67 |
| Electrical | |
| Power | 12V DC. / PoE (IEEE802.3af) |
| Power Consumption | <9E |
| Surge Protection | 6KV |
| Mechanical | |
| Casing Material | Metal bullet |
| Weight | 0.65kg. |
| Dimensions | 217.7×80.5×80.5 |
| Installation | Wall mounting, Pendent mounting |
