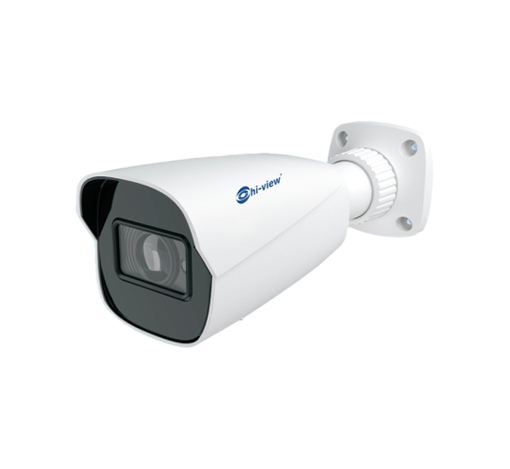

กล้องวงจรปิด IP Bullet ยี่ห้อ HI- VIEW รุ่น HP-97B802ABFPE
- 1/2.5″ CMOS progressive scan / 8MP
- Video Compression H.265/H.264/H.264+/ H.265+/MJPEG
- Day / Night Mode Auto / day / night / timing
- IR-CUT Filter Supported
- Smart IR Supported (On/Off)
- Video Encode Slice Split Supported
- Water Mark / OSD Supported
- Date and Time Supported
- Video Mask Supported (Max. 4 areas)
- ROI Supported (Max. 3 areas)
- Free DDNS www.autoddns.com, dvrdydns, Etc.
- Water-Proof IP66 Supported
- Power Supply 12V DC +- 10% / PoE (IEEE802.3af)
| Model | HP-97B80ABFPE |
| Image Sensor | 1/2.5″ CMOS progressive scan |
| Aspect Rstio | 16:9 |
| CPU | Hisilicon HI3516AV200 |
| Pixels | 8MP |
| Min.lllumination | 0.068 lux@F2.0,AGC ON, 0 lux with IR ON
0.024 lux@F1.2, AGC ON, 0 lux with IR ON |
| Lens | |
| Mount Type | 12 |
| Iris Type | Fixed iris |
| Focal Length | 3.3-12mm@F1.4 |
| Horizontal Field of View | 97.5ํ 8.5ํ |
| ABF | Supported |
| Day and Night Switching Focus | Supported |
| Infrared | |
| Day / Night Mode | Auto/day/night/timing |
| IR-CUT Filter | Supported |
| IR LED | 36 Pcs. |
| IR LED LED Distance | 20-30M. |
| Smart IR | Supported (On/Off) |
| Display | |
| Image Parmeter | 3 type (common, day, night) and schedule setting |
| Brihtness Adjust | Supported |
| Contrast Adjust | Supported |
| Hue Adjust | Supported |
| Saturation Adjust | Supported |
| Sharpness Adjust | Supported |
| Noise Reduction | Supported |
| Defog | Supported |
| WDR | Supported |
| BLC | Supported |
| HLC | Supported |
| Anti-Filcker | Supported 50Hz/60Hz |
| White Balance | Supported (Auto/indoor/outdoor/manual) |
| Frequency | Supported 50Hz/60Hz |
| Exposure Mode | Supported auto/manual (1/25s-1/100,000s) |
| Gain | Supported |
| Corridor Pattern | Supported 0/90/180/270 |
| Image Mirror | Supported |
| Image Flip | Supported |
| Backlight Compensation | Supported |
| E-zoom | Supported |
| Images | |
| Video Compression | H.265/H.264/H.264+/H.265+/MJPEG |
| Audio Compression | G711A, G711U |
| Compression Standard | Base line,Main Profile,High Profile |
| Bit Rate Type | CBR/VBR |
| Stream | Triple stream |
| Image Resolution | Main stream 3840×2190, 2560×1440, 2304×1296,1920x1080x 1280×720
Sub stream 1920×1080, 1280×720, 704×576 Third stream 1280×720, 704×576, 480×240, 352×288 |
| Image Frame Rate | Main stream 3840×2190@20fps(PAL / 2560×1440, 2304×1296, 1920×1080, 1280×720@25fps(PAL)
Sub stream 1920×1080, 1280×720, 704×576@25fps(PAL) Third stream 1280×720, 704×576, 480×240, 352×288@25fps(PAL) |
| Video Encode Slice Split | Supported |
| Water Mark | Supported |
| OSD | Supported |
| Date and Time | Supported DST,NTP, synchronize with PC, manual |
| Video Mask | Supported (Max. 4 areas) |
| ROI | Supported (Max. 3 areas) |
| Alarm | |
| Motion Alarm | Supported |
| Motion Sensitivity | Supported |
| Motion Schedule Setting | Supported |
| Motion Alsrm Triggering | Email/FTP |
| Alarm Server | Supported |
| Network | |
| Network Protocols | IPv4, IPv6, DNS, PPPoe, HTTP, HTTPS, RTSP, DNS, SNMPv1/v2/v3, 802.1X, RTSP, UPNP, SMTP,FTP,Qos,ONVIF, DST, NTP |
| Test IP Address Function | Supported |
| DDNS Protocol | autoddns.com/88ip.net/dns2p.net/meibu.com/dyndns.com/no-ip.com/dvrdydns/mintdns/123ddns.com |
| Free DDNS | www.autoddns.com,dvrdydns, Etc |
| Application Programming | ONVIF profile S |
| IP Change Notification | Support (Tringering email, FTP) |
| Online Connection | Support simultaneous monitoring for up to 6 users |
| User Interface | IE 11, NVMS2.0, APP (Superliveplus) |
| Security | |
| User Account Management | Supported |
| IP/MAC Address Filter | Supported (black and white list) |
| Locking Once lllegal Login | Supported |
| Online User Checking | Supported Kick-off |
| Maintenance | |
| Backup and Restore | Supported export/import setting, long default |
| Reboot | Supported time/date schedule |
| System Upgrade | Supported |
| Log Serach | Supported export log |
| Interfaces | |
| RJ45 | x1 (Speed 100Mbps), PoE |
| Power Input | x1 (DC jack) |
| Environmental | |
| Operating Temperature | -30ํC-+60ํC |
| Operating Humidity | 95% or less (non-condensing) |
| Water-Proof | IP66 |
| Electrical | |
| Power Supply | 12V DC +- 10% / PoE (IEEE802.3af) |
| Power Consumption | IR Off:31mA/3.1W
IR On:51mA/6.4W |
| Mechanical | |
| Weight | Approx. 0.6KG |
| Dimensions | 219.4×86.7 |
