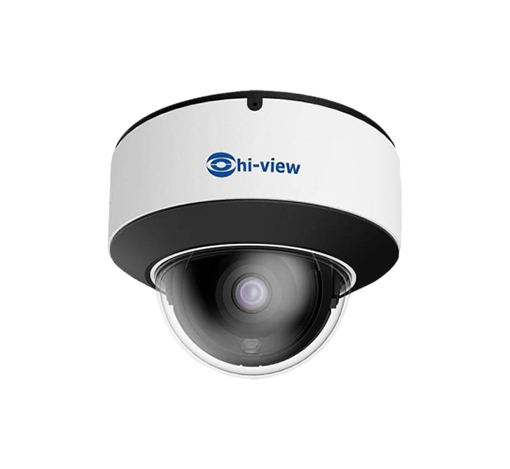

กล้องวงจรปิด IP DOME ยี่ห้อ HI- VIEW รุ่น HP-97D502PE
- Dome IR Camera 5MP
- Dome P Camera 5.0Mega pixel (PoE)
- 1/2.7″ CmosH.264/H.265, Len 3.6 mm.
- IR 20-30 M, 3D-DNR, D-WDR, HLC, BLC, Defog,
- ROI, support three stream, IP67 & IK18
- Intelligent analytic
Specification
| model | HP-97D502PE |
| Camera | |
| Image Sensor | 1 / 2.7 “CMOS |
| Image Size | 2592×1944 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. lllumination | 0.0236 lux @F2.0,AGC ON; 0 lux with IR
0.0085 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm @F1.85, horizontal field of view: 93.4 ํ
3.6 mm @F2.0, horizontal field of view: 79.4 ํ |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | pan : 0 ํ~335 ํ Tilt : 0 ํ~67 ํ, Rotation : 0 ํ~255 ํ |
| Image | |
| Video Compression | H.265 / H.264 |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 5MP (2592 x 1944), 4MP (2560 x 1440), 1080P (1920 x 1080), 720P (1280 x 720), D1, CIF, 480 x 240 |
| Main Stream | 60Hz : 5MP(1~20fps)/4MP(1~30fps)/1080P (1~30fps)/720P(1~30fps)
50Hz : 5MP(1~20fps)/4MP(1~25fps)/1080P (1~25fps)/720P(1~25fps) |
| Sub Stream | 60Hz : 720P(1~15fps)/D1(1~30fps)/CIF(1~30fps);
50Hz : 720P(1~12fps)/D1(1~25fps)/CIF(1~25fps); |
| Third Stream | 60Hz : D1/CIF/480×240(1~30fps); 50Hz : D1/CIF/480×240(1~25fps) |
| Bit Rate | 64 kbps ~ 5 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web broser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Video Output | No |
| Audio | No |
| Storage | No |
| Hardwere Reset | No |
| Function | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users;
Support multi-stream real time transmission |
| Network Protocal | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF, GB-T28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password Protection |
| Intelligent Analytics | Object removal Detection, abnormal video single detection, intrusion detection and line crossing detection (optional) |
| PoE | Yes |
| IR Distance | 20 ~ 30 m |
| Ingress Protection | IP67&IK10 |
| Others | |
| Power Suplly | DC12V/PoE |
| Power Consumption | < 6W |
| Operating Environment | -30 ํC ~ 60 ํC (-22 ํF ~ 140 ํF) |
| ฺDimensions (mm) | 119 x 87.8 |
| Weight (net) | Approx. 0.60KG |
| Installation | Ceiling mounting; Wall mounting |
