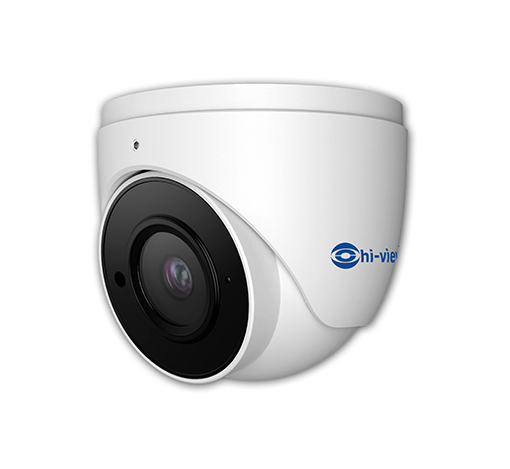

กล้องวงจรปิด IP DOME ยี่ห้อ HI- VIEW รุ่น HP-97D203PE
- 2MP (1920 x 1080) H.265 coding
- Max.resolution : 1920 x 1080
- ICR auto switch, true day / night, ROI coding
- 3D DNR, digital WDR, HLC, BLC, defog
- 10-20m IR night view distance
- PoE power supply (optional)
- 1CH built-in MIC
- P2P function optional
- IP67 ingress protection
- Support dual streams
- Support mobile surveill ance by smart phones with iOS and Android OS
- Intelligent analytics : video blur detection, line crossing detection and region intrusion detection
SPECIFICATION
| MODEL | HP-97D203PE |
| Camera | |
| Image Sensor | 1/3.2 “CMOS |
| Image Size | 1920×1080 |
| Electronic Shutter | 1/25 s~ 1/ 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.012lux @F1.2,AGC ON; O lux with IR |
| 0.046 lux @ F2.0, AGC ON; O lux with IR | |
| Lens | 2.8 mm @F2.0, (fixed lens), horizontal field of view: 93.70 |
| 3.6 mm @F2.0, (fixed lens), horizontal field of view: | |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0~3600; Tilt:0~75%; Rotation: 0~360~ |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 1080P (1920 x 1080), 720P (1280 x 720), D1, 480 x 240, CIF |
| Main Stream | 60Hz : 1080P/720P(1~30fps); 50Hz : 1080 P/720P(1~25fps) |
| Sub Stream | 60Hz : D1/CIF /480×240(1~30fps); 50HZ: D1/C IF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR/CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, |
| Sharpen, NR, etc. adjustable through client software or web browser | |
| ROI | Each ROI to be configured separately |
| Audio Compression | G711A/U |
| Interfaces |
|
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH built-in MIC |
| Storage | No |
| Hardware Reset | No |
| Functions | |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users; |
| Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPOE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion detection |
| Intelligent Analytics | Region intrusion detection, video blur detection and line crossing detection |
| General Function | Wate rmark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Optional |
| IR Distance | 10 ~ 20m |
| Ingress Protection | IP67 |
| Others | |
| Power Supply | DC12V(PoE power supply optional) |
| Power Consumption | <5W |
| Operating Environment | – 20 “C ~ 55 C (-4~F~131 F) Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 94.8 x 82.8 |
| Weight ( net ) | Approx. 0.287KG |
| Installation | Ceiling mounting ( Wall mounting available with the junction box and bracket ) |
