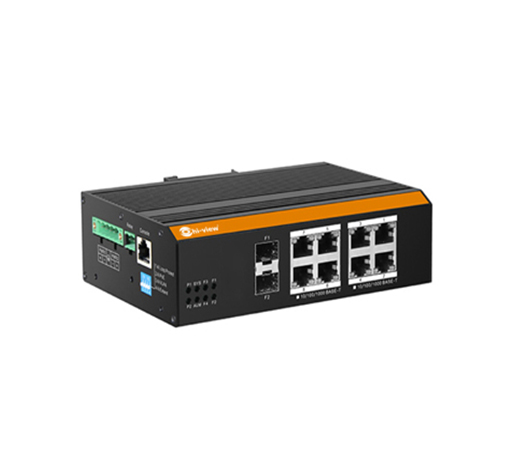

POE Switch 8 Port ยี่ห้อ Hi – View รุ่น HR-8PG2F-L2AI
- IEEE 802.3at and IEEE 802.3af Power
- over Ethernet (PoE) Compliant
- 8*10/100/1000 Mbps PoE ports/ 2 Gigabit SFP
- Provides up to 46 Watts per PoE port
- RUN-Ring (Self-healing time<10ms)
- IP40 grade Protection
- Backplane bandwidth : 20Gbps
- 8K MAC Address entries
- 4 Mb port buffer
- Support AI Extend/AI VLAN/AI Loop Protect
- OSI Layer 2
| Model | HR-8PG2F-L2AI |
| Network Ports | 10 |
| PoE Port | 8*10/100/1000 Mbps RJ45 ports |
| Uplink Port | 2*1000M SFP Port |
| Standard | |
| Network Protocol | IEEE802.802.3u,802.3af,802.3at.IEEE802.2ab |
| Performance | |
| Backplane bandwidth | 20 Gbps |
| Max.Eorwarding rate | 29.76 Mbps |
| High Priority Ports | Power supply priority 1>2>3>4>5>6>7>8 |
| Mac Address Table | 8K |
| Power Over Ethernet | |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| PoE Power Budget | 46W |
| Working Mode | AI PoE: Automation detection power of port, power off and restart the device if find dead machine AI Extend: AI Extend 250M (oniy for PoE model) AI VLAN: The downlink ports are isolated from each othe and can (only communicate with uplink ports.) AI Loop protect: Restrain ring network broadcast storm and build ring network |
| General | |
| Power Supply | Input voltage : 48-56V DC/96W |
| Power Consumption | 6W (only for no-load); Max 150W (full load, including PoE) |
| Protection | Power supply supports overvoltage protection IEC61000-4-2 (ESD): +-8kV (Contact),+-15kV (air) IEC61000-4-5 (Surge): Power port : +-2kV/CM; Data port : +-6kV |
| Working Temperature | -40 ํC – 75 ํC |
| Storage Humidity | 5%-90% (no-condensation) |
| Net Weight | 2.0 kg |
| Dimension | 163mm x 46.5mm x 110mm |
