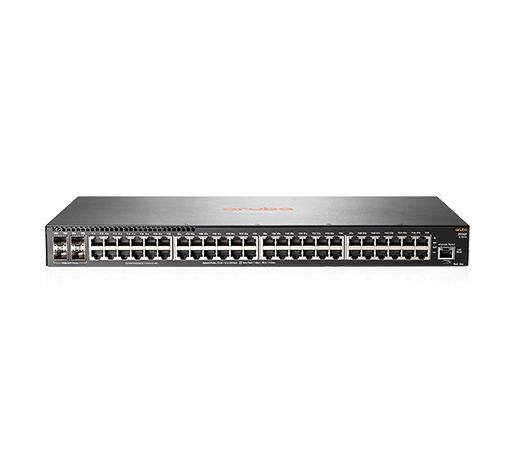

SWITCH ยี่ห้อ ARUBA รุ่น JL260A
Specification
JL260A Specification |
|
| Type | Aruba 2930F 48G 4SFP Switch |
| System specifications | |
| I/O ports and slots | · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only
· 4 SFP |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Memory and processor | Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 GB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC |
| Management | Aruba AirWave Network Management; IMC – Intelligent Management Center
Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Performance specifications | |
| 1000 Mb Latency | < 3.8 μs (64-byte packets) |
| 10 Gbps Latency | N/A |
| Throughput | up to 77.4 Mp/s |
| Switching capacity | 104 Gb/s |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 32768 entries |
| Physical specifications | |
| Dimensions | 4.39 x 44.25 x 24.63 cm ( 1.73 x 17.42 x 9.7 in)
1U height |
| Electrical specifications | |
| 80plus.org Certification | N/A |
| Description | N/A |
| Maximum heat dissipation | 167.74 kJ/hr (159 BTU/hr) |
| Voltage | 100 – 127 / 200 – 240 V ac, rated |
| Current | 0.9/0.6 A |
| Maximum power rating | 46.6 W |
| Idle power | 32.7 W |
| Frequency | 50/60 Hz |
| PoE power | N/A |
| Environmental specifications | |
| Operating temperature | 0°C to 45°C (32°F to 113°F)
up to 5000 Feet – 0C to 40C (32F to 104F) up to 10000 Feet |
| Operating relative humidity | 15% to 95% @ 40°C ( 104°F)
noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F)
up to 15000 Feet |
| Nonoperating/Storage temperature | 15% to 95% @65°C ( 149°F)
noncondensing |
| Acoustic | Power: 54.1 dB, Pressure: 40.2 dB |
| Airflow direction | Side-to-side |
| Safety certifications | |
| Safety | UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 IEC 60950-1:2005 +A1:2009 +A2:2013 CSA 22.2 No. 60950-1-07 2nd EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
| Emissions | EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A VCCI Class A; ICES-003 Class A CNS 13438 |
| Immunity | Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2 RadiatedIEC 61000-4-3 EFT/BurstIEC 61000-4-4 SurgeIEC 61000-4-5 ConductedIEC 61000-4-6 Power frequency magnetic fieldIEC 61000-4-8 Voltage dips and interruptionsIEC 61000-4-11 HarmonicsIEC/EN 61000-3-2 FlickerIEC/EN 61000-3-3 |
