| Product |

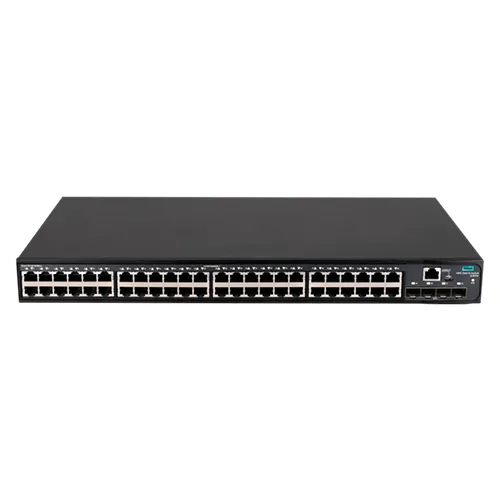

HPE FlexNetwork 5140 48G 4SFP+ EI Switch (JL829A) |
| I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
4 SFP+ fixed 1000/10000 SFP+ ports |
| Additional ports and slots |
1 RJ-45 serial console port |
| Dimensions |
17.32(w) x 9.04(d) x 1.72(h) in (44 x 23 x 4.36 cm) (1U height) |
| Weight |
7.72 lb (3.5 kg) |
| Memory and processor |
512 MB SDRAM, 256 MB flash |
| Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
| Performance |
IPv6 Ready Certified |
| 1000 Mb Latency |
< 5 µs |
| 10 Gbps Latency |
< 3 µs |
| Throughput |
131 Mpps |
| Routing/Switching capacity |
176 Gbps |
| Routing table size |
1024 entries |
| MAC address table size |
16384 entries |
| Operating temperature |
23°F to 113°F (-5°C to 45°C) |
| Operating relative humidity |
10% to 90%, noncondensing |
| Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
| Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
| Acoustic |
Low-speed fan: 42.2 dB, High-speed fan: 49.3 dB; ISO 7779 |
| Frequency |
50/60 Hz |
| Maximum heat dissipation |
130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max |
| Voltage |
100 – 240 VAC |
|
-48 to -60 VDC |
| Current |
10:00 AM |
| Maximum power rating |
44 W |
| Idle power |
38 W |
| Warranty |
Lifetime |
