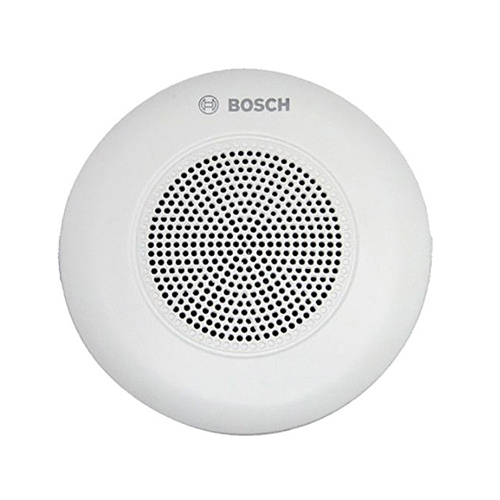

ลำโพงเพดาน  ยี่ห้อ Bosch รุ่น LC5-WC06E4

The LC5‑WC06E4 is an extreme compact ceiling loudspeaker, suitable for speech and background music reproduction. The design of the front grille perfectly matches with current available recessed luminaires, integrating light and sound. The optional back‑box LC5‑CBB fully protects the rear of the loudspeaker from dust and dripping water from above, making the combination IP 44 protected. The loudspeaker frame, grille and back‑box are manufactured from self‑extinguishing ABS according to UL 94 V 0.

This ceiling loudspeaker is suitable for use in low ceiling applications with low noise level. The small driver used in the unit stands for delivering good sound quality from a small sized unit and provides a wide opening angle for the important frequency octaves. Fewer loudspeakers are needed to cover a given area, and the noticeable “fading” that occur as a listener walks from one loudspeaker to another area is eliminated.

The loudspeaker (with assembled back‑box) is suitable for use in humidity-, chlorine- and salty environments.

Technical specifications
Electrical*
LC5‑WC06E4

• Description:   Ceiling Loudspeaker
• Maximum power:   9 W
• Rated power:   6 W (6/3/1.5/0.75W)
• Sound pressure level at 6 W power / 1 W (1 kHz, 1 m):    90 dB / 82 dB (SPL)
• Opening angle at 1 kHz / 4kHz (-6 dB):   180° / 180°
• Effective frequency range (-10 dB):   85 Hz to 20 kHz
• Rated voltage:   6.93 / 70 / 100 V
• Rated impedance:   8 / 835 / 1667 Ohm
• Electrical connection :  2x two‑way screw terminal block
• Acceptable wire gauge :  0.5 – 2 mm

Mechanical
LC5‑WC06E4

• Description:   Ceiling Loudspeaker
• Diameter:   88 mm (3.46 in)
• Mounting cut‑out :  76 mm (2.99 in)
• Min./Max. ceiling thickness:   5 to 25 mm (0.19 to 0.98 in)
• Maximum depth:   78 mm (3.07 in)
• Material :  ABS (V 0)
• Weight :   395 g ( 0.87lb)
• Color :  White (RAL 9003)

LC5‑CBB

• Description:   Back‑Box
• Diameter:   75 mm (2.95 in)
• Maximum depth :   83.5 mm (3.29 in)
• Material :  ABS (V 0)
