ลำโพงเพดาน  ยี่ห้อ Bosch รุ่น LC6-100S-L

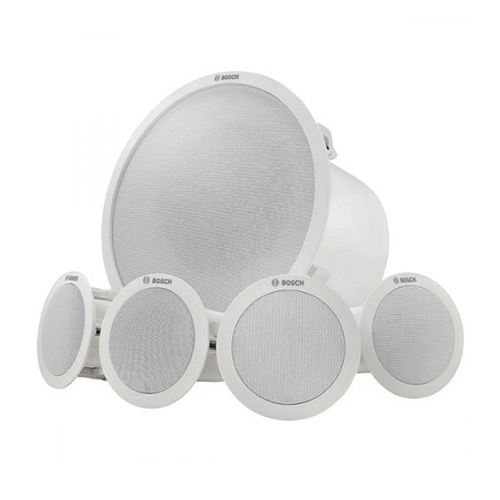

The LC6-100S-L ceiling mount Compact Sound Speaker System is a complete loudspeaker system package with matched components that together deliver high quality sound. The system is ideal for background and foreground music systems for restaurants, bars, patios, retail, and other applications. The system consists of a high performance ceiling mount 8-inch subwoofer module with a crossover network to support the included four (4) ceiling mount 2-inch satellite speakers. The system provides for easy signal connections at the subwoofer and can support either 4 ohm or 70/100v signal connections. Its high power handling allows the system to be used in a wide variety of environments and spaces to provide high quality background or foreground music.

Technical specifications

LC6-S-L                                                               LC6-SW100-L

Frequency Response (-10 dB):                       180 Hz – 20 kHz1 , 45 Hz – 300 Hz1

Power Handling:                                               30 W2 , 200 W2

Sensitivity:                                                         84 dB1 , 88 dB1

Impedance:                                                       16 ohms , mono 4 ohm

Maximum SPL:                                                102 dB , 114 dB

Voice Coverage (H x V):                                150° x 150°3 , Omnidirectional

Music Program Coverage (H x V):              100° x 100°4 , Omnidirectional

Transducer:                                                     50 mm (1.97 in) , 200 mm (7.87 in)

Connectors:                                                     Phoenix (4-pin) , Phoenix (2-pin)

Enclosure:                                                        Steel & ABS (fire rated) , Steel & ABS (fire rated)

Transformer Taps:                                         N/A , 100 W, 50 W, 25 W, 12.5 W

Dimensions (H x Dia):                                  119 mm x 135 mm(4.7 in x 5.3 in) , 316 mm x 373 mm (12.44 in x 14.69 in)

Cutout Size:                                                     114 mm (4.49 in) , 346 mm (13.6 in)

Net Weight (each):                                         0.82 kg (1.8 lb) , 9.52 kg (21 lb)
