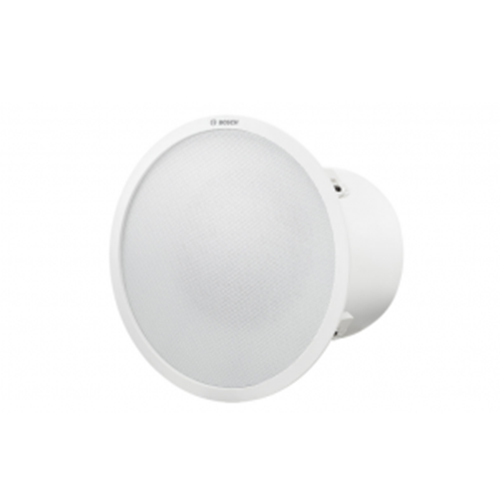

ลำโพงเพดาน  ยี่ห้อ Bosch รุ่น LC6-SW100-L

The LC6-SW100-L is ideal for background and foreground music systems for restaurants, bars, patios, retail, and other applications. The LC6-SW100-L consists of a high performance ceiling mount 8-inch subwoofer module with a crossover network to support four (4) ceiling mount LC6-S-L 2-inch satellite speakers. The system provides for easy signal connections at the subwoofer and can support either 4 ohm or 70/100v signal connections. Its high power handling allows the LC6-SW100-L to be used in a wide variety of environments and spaces to provide high quality background or foreground music.

Technical specifications

• Frequency Response (-10 dB):   45 Hz – 300 Hz1
• Power Handling:  200 W2
• Sensitivity:  88 dB1
• Impedance: mono 4 ohm
• Maximum SPL: 114 dB
• Voice Coverage (H x V): Omnidirectional
• Music Program Coverage (H x V): Omnidirectional
• Transducer: 200 mm (7.87 in)
• Connectors: Phoenix (2-pin)
• Enclosure: Steel & ABS (fire rated)
• Transformer Taps: 100 W, 50 W, 25W, 12.5W
• Dimensions (H x Dia): 316 mm x 373 mm (12.44 in x 14.69 in)
• Cutout Size: 346 mm (13.6 in)
• Net Weight (each): 9.52 kg (21 lb)
• Shipping Weight: 12.72 kg (28 lb)
• Included Accessories: C-Ring, Tile Rails
