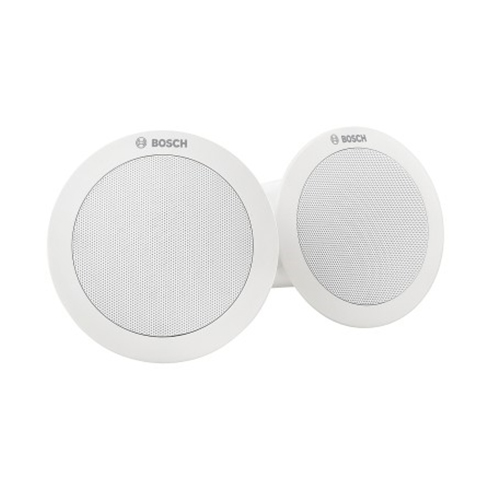

ลำโพงเพดาน  ยี่ห้อ Bosch รุ่น LC6-S-L

The LC6-S-L is a 16 ohm 2-inch ceiling mount background music speaker designed to be used in conjunction with the LC6-SW100-L subwoofer. The LC6-S-L provides for easy connections to the unit through a detachable phoenix style connector and mounts easily into a wide variety of ceiling materials with captive mounting tabs.

Technical specifications

• Frequency Response (-10 dB): 180 Hz – 20 kHz1
• Power Handling: 30 W2
• Sensitivity: 84 dB1
• Impedance: 16 ohms
• Maximum SPL: 102 dB
• Voice Coverage (H x V): 150° x 150°3
• Music Program Coverage (H x V): 100° x 100°4
• Transducer: 50 mm (1.97 in)
• Connectors: Phoenix (4-pin)
• Enclosure: Steel & ABS (fire rated)Transformer Taps: N/A
• Dimensions (H x Dia): 119 mm x 135 mm (4.7 in x 5.3 in)
• Cutout Size: 114 mm (4.49 in)
• Net Weight (each): 0.82 kg (1.8 lb)
• Shipping Weight (pair): 2.34 kg (5.16 lb)
• Included Accessories: C-Ring
