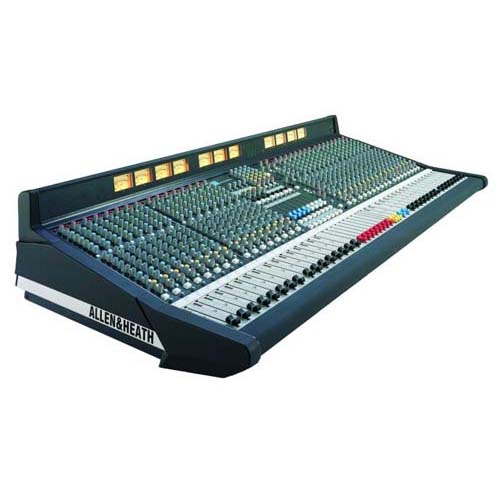

มิกเซอร์ ยี่ห้อ Allen & Heath รุ่น ML3000-32B

The Allen & Heath ML3000-32B is a dual function, LCRplus, 4 group, 8 aux, 8×4 matrix, VCA console. With B type for 4 extra dual stereo in place of mono channels. Allen & Heath ML3000-32B design ensures on-the-road durability, a clear layout for easy walk up and go operation, and nocompromise audio performance. In conclusion, the Allen & Heath ML3000-32B console that can be obtained with a typical buy cheap wholesale prices by this online store are designed with 3 operation modes (FOH, Recording, Monitor), 2 extra dual input stereo channels fitted as standard and 6 stereo inputs (alternative: as XLR-Mic-In) with 48V-Phantom (singly switchable), Mic/Line switchable, Phase reverse (with. Widht by Stereo), adjustable HP, Inserts for XLR-Inputs. This 32 channles mixer are sold at cheap wholesale prices are also still have some other interesting features like Aux.s, groups, master und mono-out and direct-out for 4-Band EQ, para. mids, 4-Band-EQ by Stereo, Mute, Pfl, LCR-PAN-Out, VU-Meter, 8 sub-groups, 3 Master-Outs, 8 Aux (5-8 fader!)), 7×4 Matrix, talk-back input (XLR), 2 XLR-Lamp-Out (4-pin), sys-link-able (Option), and included 19″/2HE transformer and meterbridge more. Allen & Heath ML3000-32B can be quickly configured for Front-Of-House (FOH) or stage monitor mixing. As one console suitable for both applications it is equally well suited to installation, rental and touring. The Allen & Heath ML3000-32B offers an I/O capability and feature set that satisfies the latest requirements of live sound engineering, in particular the growing number of inputs and outputs for multi-speaker house and monitor systems, demands of stereo in-ear monitoring, 3 speaker LCR imaging, advanced grouping and automation.

• 32 mono, 2 stereo inputs
• B type for 4 extra dual stereo in place of mono channels
• 2 extra dual input stereo channels fitted as standard
• 8 VCA groups for level control
• Dual functionality for mixing front-of-house, stage monitors or both
• Monitor mode provides auxes with faders, inserts, mutes and meters
• LCRplus panning available from channels and groups
• 4 audio groups for inserting processors or feeding the matrix
• 8 aux sends plus aux 7-8 stereo mode for creating a true stereo mix
• 8×4 matrix with inserts and external inputs
• 8 mute groups
• 4 band EQ with swept mid range
• Swept 20-400Hz HPF
• Stereos can mix two balanced stereo sources into one channel
• 128 snapshot memories for MIDI/RS232 recall of VCA assignments and mutes
• Allen & Heath ML Archiver software available for PC control of the memories
• Talkback to any of the fader masters and LCR outputs
• PFL override AFL for quick input/output monitoring
• Fader driven engineer’s listen wedge feed with insert in monitor mode
• Simultaneous LED bar and moving coil VU metering of all main outputs and P/AFL
• Channel meters
• Separate stereo headphones and local monitor control
• LCR to stereo engineer’s monitor capability
• 1kHz oscillator / pink noise generator
• Preamp input capability for mic or line up to +30dBu
• Main, group, aux and matrix outputs on balanced XLR
• 4-pin XLR lamp sockets – Allen & Heath LEDlamp available
• Uses RPS11 high performance external linear power supply
• Optional RPSD2 dual supply combiner to link another RPS11 for backup
• Optional Sys-Link V2 input/output option to link consoles for more channels
• Internal aux jumper options for pre-insert, pre/post-EQ, pre/post-mute settings
• Internal direct output jumper options for pre/post-fade or to use aux 1 level trim

Specifications

• Number of Channels: 32
• Type: B type for 4 extra dual stereo in place of mono channels
• Operating Levels
• Channels: 0dBu Headroom +21dB
• Mix: -2dBu Headroom +23dB
• Max XLR output: +23dBu
• Frequency Response Referred to 1kHz at +4dBu
• Mic to main output (+40dB): 20Hz to 70kHz +0/-0.5dB
• Line to main output (0dB): 20Hz to 22kHz +0/-0.5dB
• Distortion @1kHz 0dBu
• THD+noise: < 0.01%
• CMRR Common mode rejection @1kHz
• Mic (+40dB): > 85dB
• Mic + Pad (0dB): > 50dB
• Crosstalk Referred to driven channel @1kHz
• Channel to channel: < -95dB
• Mute shutoff: < -85dB
• Fader shutoff: < -85dB
• Noise Performance Measured rms 22Hz to 22kHz unweighted
• Mic EIN with 150 ohm source: -128dB
• Residual output noise: < -98dBu
• Mix noise, nothing routed: < -95dBu
• Mix noise, 32 channels routed: < -88dBu
• Metering Reading 0: 0dBu at XLR outputs
• LED meters: Peak reading, 3 colours
• VU meters: Ave reading, Illuminated moving coil
• Peak indicators: 5dB before clip, multi-point sensing
• Input meters: 4 bar LED (signal, 0, +6, peak)
• Group/Mtx meters: VU
• L,R,C meter: VU and 16 bar LED
• Lamp Connectors x3
• Connector: XLR-F 4pin
• Rating: 12V 400mA max
• Channel Filters Slope: 12dB/oct high pass
• Frequency: Off to 400Hz
• Mono Equaliser HF: +/-15dB, 12kHz shelf
• HM: +/-15dB, 500Hz to 15kHz bell Q=1.9
• LM: +/-15dB, 35Hz to 1kHz bell Q=1.9
• LF: +/-15dB, 60Hz shelf
• Stereo Equaliser HF: +/-15dB, 12kHz shelf
• HM: +/-15dB, 2.5kHz bell Q=1.6
• L: +/-15dB, 250Hz bell Q=1.6
• LF: +/-15dB, 60Hz shelf
• Power Supply Model RPS11
• Case: External 3U rack or floor mount
• Type: Linear, convection cooled
• Mains Voltage: 100,120,220,230 V.AC selectable
• Mains Frequency: 50/60Hz
• Power consumption: 300W
• Inputs Mic (Pad out): XLR balanced, pin2+ 2k ohm, variable -60 to -10dBu, Max +11dBu
• Mic/Line (Pad in): >10k ohm, variable -40 to +10dBu, Max +31dBu
• Stereo ST1-12: TRS jack balanced, tip+ >20k ohm, variable -18 to +6dBu, Max +27dBu
• 2-Track: TRS jack balanced, tip+ >20k ohm, 4dBu Max +25dBu
• Matrix Ext In: TRS jack balanced, tip+ >20k ohm, 0dBu Max +21dBu
• Inserts: Input: TRS jack unbalanced, tip send, ring return 0dBu Max +21dBu
• Output: TRS jack unbalanced, tip send, ring return 2dBu Max +21dBu
• Matrix: TRS jack unbalanced, tip send, ring return -2dBu Max +21dBu
• Outputs: L,R,C: XLR balanced, pin2+ <75 ohm 0dBu Max +23dBu
• Grp 1-4: XLR balanced, pin2+ <75 ohm 0dBu Max +23dBu
• Aux 1-8: XLR balanced, pin2+ <75 ohm 0dBu Max +23dBu
• Matrix 1-4: XLR balanced, pin2+ <75 ohm 0dBu Max +23dBu
• Direct out: TRS jack ground comp, tip+ <50 ohm 0dBu Max +21dBu
• 2-Track: TRS jack ground comp, tip+ <50 ohm 0dBu Max +21dBu
• TB/Osc out: TRS jack imp balanced, tip+ <50 ohm 0dBu Max +21dBu
• Local Monitor: TRS jack imp balanced, tip+ <50 ohm 0dBu Max +21dBu
• Headphones: TRS jack tip left, ring right for stereo headphones >30 ohms
• Dimensions: 1396 x 640 x 252 mm
• Weights: 41 kg (90 lbs)
