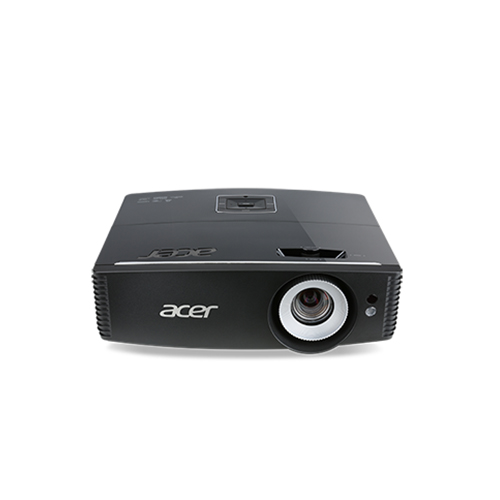

| PROJECTOR P6505 |
DLP, 1080p(1,920 x 1,080) ,Contrast Ratio 20,000:1 |
| Projection System |
DLP® |
| Native Resolution |
1080p (1,920 x 1,080 |
| Max. Supported Resolution |
WUXGA (1,920 x 1,200) |
| Brightness |
5,500 ANSI Lumens (Standard), 4,400 ANSI Lumens (ECO),(Compliant with ISO 21118 standard) |
| Aspect Ratio |
16:9 (Native),4:3 (Supported) |
| Display Panel |
0.65 inch DarkChip 3 DMD |
| Contrast Ratio |
20,000:1 |
| Optical Zoom Ratio |
1.6X |
| Digital Zoom |
2X |
| Throw Ratio |
1.41 ~ 2.24 (66 inch@2m) |
| Projection Lens |
F = 2.50 ~ 3.26,f = 20.91mm ~ 32.63mm,Manual Zoom & Focus |
| Projection Screen Size (Diagonal): |
20 inch ~ 300 inch (51cm ~ 762cm) |
| Projection Distance |
1.0m ~ 9.4m (3.3′ ~ 30.7′) |
| Keystone Correction |
+/-30° (Vertical, Manual),+/-30° (Horizontal, Manual),4-Corner adjustment |
| Projection Offset (By half height) |
98% ~ 132% |
| Lens Shift(By full height & Width) |
49% ~ 66% (Vertical Offset) Manual |
| Audio |
10W Speaker x 2 |
| Lamp Type |
Philips 365W |
| Lamp Life |
3,000 Hours (Standard),4,000 Hours (ECO),4,500 Hours (ExtremeEco) |
| Noise Level |
35 dBA (Standard),30 dBA (ECO),without dust filter |
| Displayable Colors |
1.07 Billion Colors |
| Horizontal Scan Rate |
15k ~ 100k Hz |
| Vertical Refresh Scan Rate |
24 ~ 120 Hz |
| Projection Mode |
Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability |
YES |
| Input Interface |
Analog RGB/Component Video (D-sub) x 2 |
|
Composite Video (RCA) x 1 |
|
S-Video (Mini DIN) x 1 |
|
Component (3 RCA) x 1 |
|
HDMI1.4b/MHL (Video, Audio, HDCP) x 1 |
|
HDMI1.4b (Video, Audio, HDCP) x 1 |
|
HDMI1.4b/MHL (Video, Audio, HDCP, Internal) x 1 |
|
HDBaseT (RJ45) x 1 |
|
PC Audio (Stereo mini jack) x 1 |
|
L/R Audio (Stereo RCA) x 1 |
|
Mic In (Stereo mini jack) x 1 |
| Output Interface |
Analog RGB (D-sub) x 1 |
|
PC Audio (Stereo mini jack) x 1 |
|
DC Out (5V/1.5A, USB Type A) x 1 |
|
DC Out (5V/1.5A, USB Micro-B, Internal Plug) x 1 |
| Control Interface |
USB (Mini-B) x 1 |
|
RS232 (D-sub) x 1 |
|
12V DC (Screen control) x 1 |
| Network Interface |
Ethernet port (RJ45) x 1 |
| Weight |
4.5 Kg (9.9 lbs) |
| Dimensions |
369 x 294 x 116 mm (14.5 inch x 11.6 inch x 4.6 inch) |
| Warranty |
3 Years Part and Labor Pick UP 3 Years (excluded cable and others accessory) / Lamp warranty with 1 year or 1000 hrs. |
| Accessories in the Box : |
AC power cord |
|
VGA cable |
|
Remote control |
|
Battery for remote control |
|
Cable management cover |
|
Duster filter |
|
Lens cap |
|
Carrying case |
|
User’s guide (CD-ROM) |
|
Quick start guide |
|
Security card |
